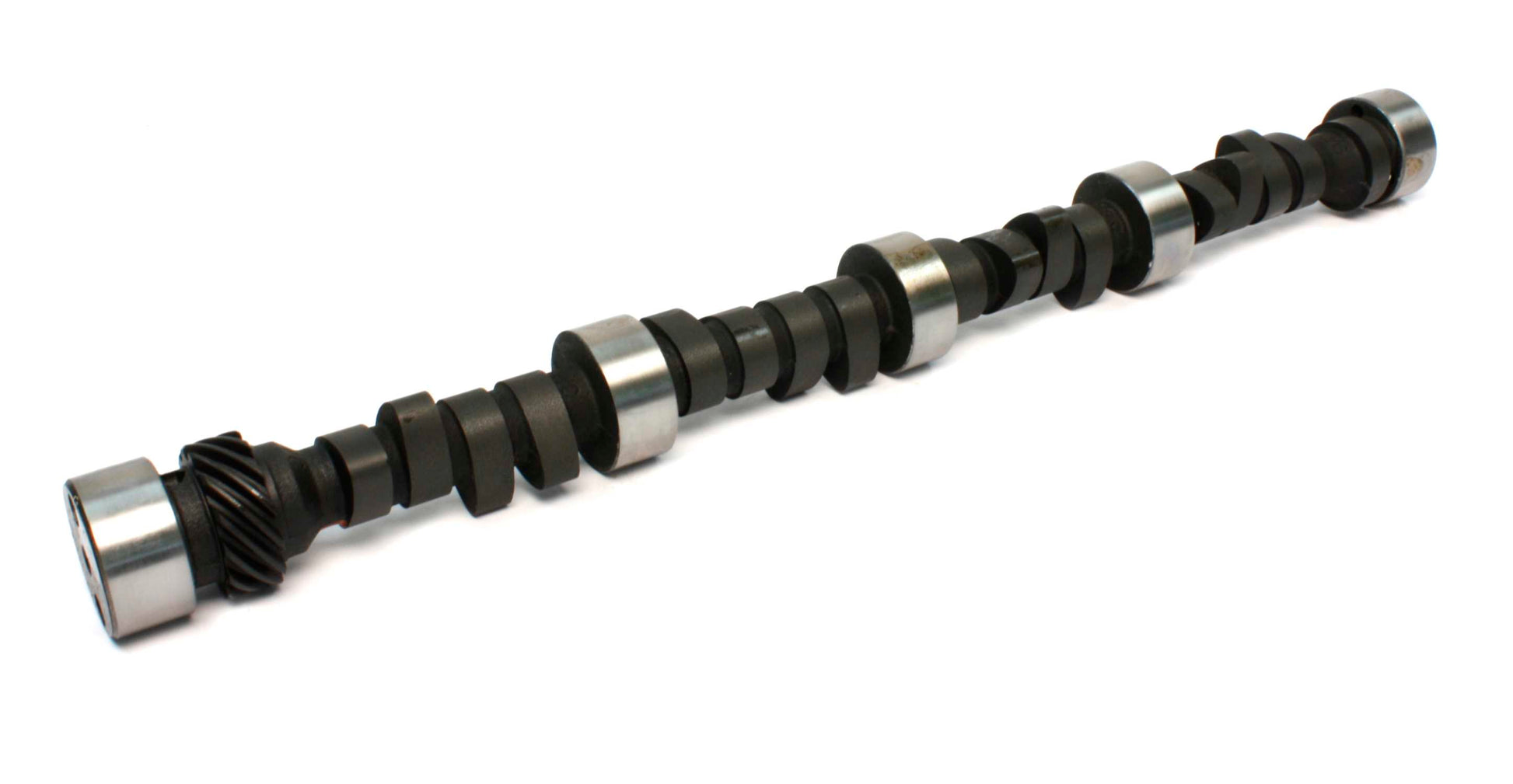

Xtreme Energy 4/7 Swap 240/246 Hydraulic Flat Cam For Chevrolet Small Block

• GTIN: 00036584096610
• Brand Name: COMP Cams
• Valve Springs Required: Yes
• Assembly Lubricant Included: Yes
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Cast Iron
• Lifter Type: Hydraulic Flat Tappet
• Engine Family: Chevrolet 262-400 c.i. 8 Cylinder (1958-1998)
• Amazon ASIN: B001G7BN48
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Camshaft Series: Xtreme Energy 4 and 7 Swap Firing Order
• Usage: Street/Performance
• Cam Type: Hydraulic Flat Tappet
• Grind Number: XE284H-10
• Basic Operating RPM Range: 2,300-6,500
• Intake Duration at .050 Inch Lift: 240
• Exhaust Duration at .050 inch Lift: 246
• Advertised Intake Duration: 284
• Advertised Exhaust Duration: 296
• Lobe Separation: 110
• Intake Valve Lift: 0.507
• Exhaust Valve Lift: 0.51
• Lifters Included: No

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 3 x 2.75 inches
• Weight: 8.63 lb
