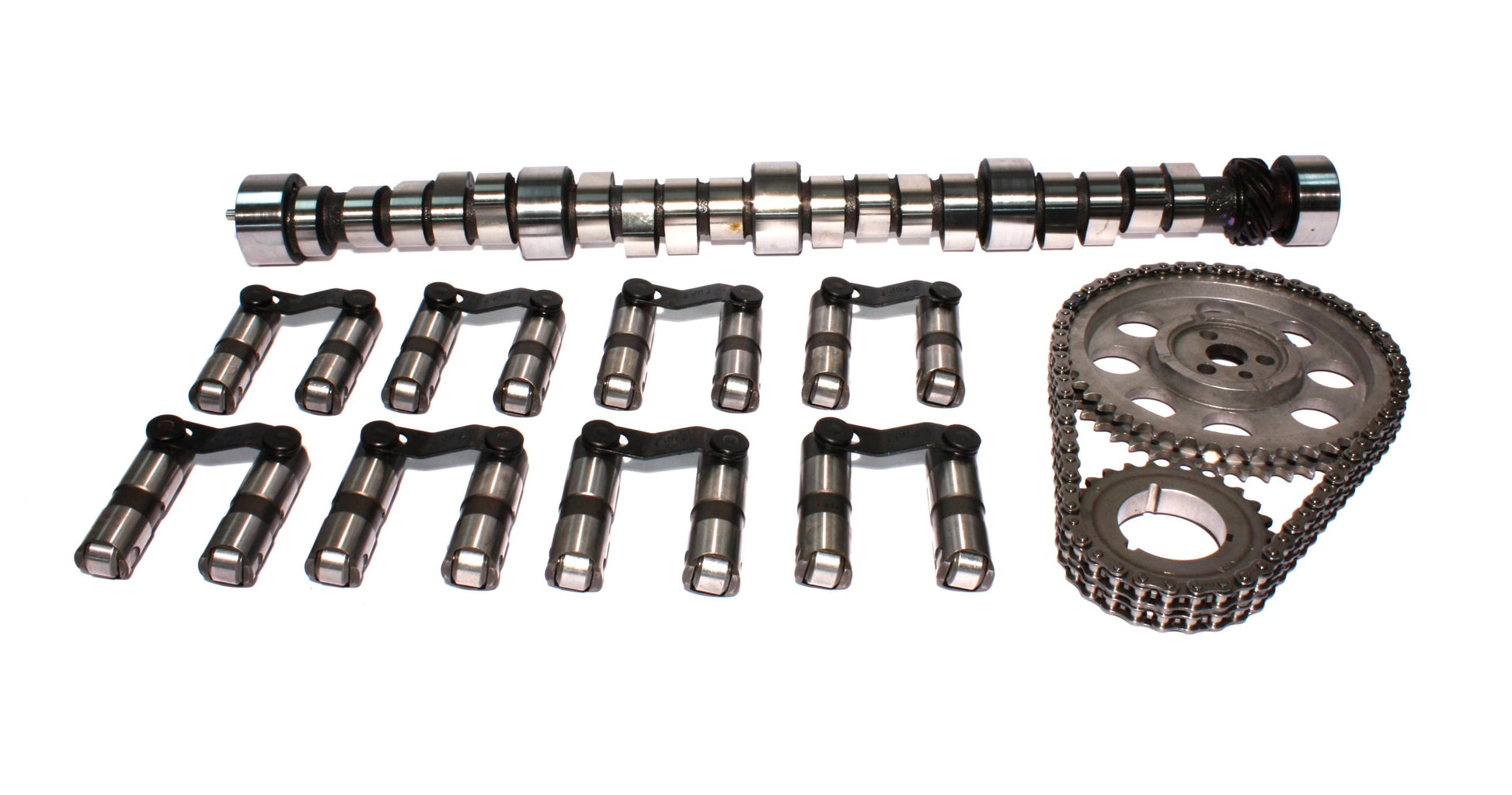

Xtreme Energy 236/242 Hydraulic Roller Cam SK-Kit Chevrolet Big Block 396-454

• GTIN: 00036584025962
• Brand Name: COMP Cams
• Cam Type: Hydraulic Roller
• Basic Operating RPM Range: 2,500-6,000
• Intake Duration at .050 Inch Lift: 236
• Exhaust Duration at .050 inch Lift: 242
• Advertised Intake Duration: 288
• Advertised Exhaust Duration: 294
• Lobe Separation: 110
• Intake Valve Lift: 0.521
• Exhaust Valve Lift: 0.54
• Lifters Included: Yes
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Austempered Ductile Iron
• Lifter Type: Hydraulic Roller
• Timing Chain and Gears Included: Yes
• Valve Stem Seals Included: No
• Retainers Included: No
• Locks Included: No
• Pushrods Included: No
• Gaskets Included: No
• Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
• Amazon ASIN: B001GF2OUC
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Kit Type: SK-Kit - Small Kit
• Camshaft Series: Xtreme Energy
• Usage: Street/Performance

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 26 x 10.5 x 5 inches
• Weight: 22 lb
