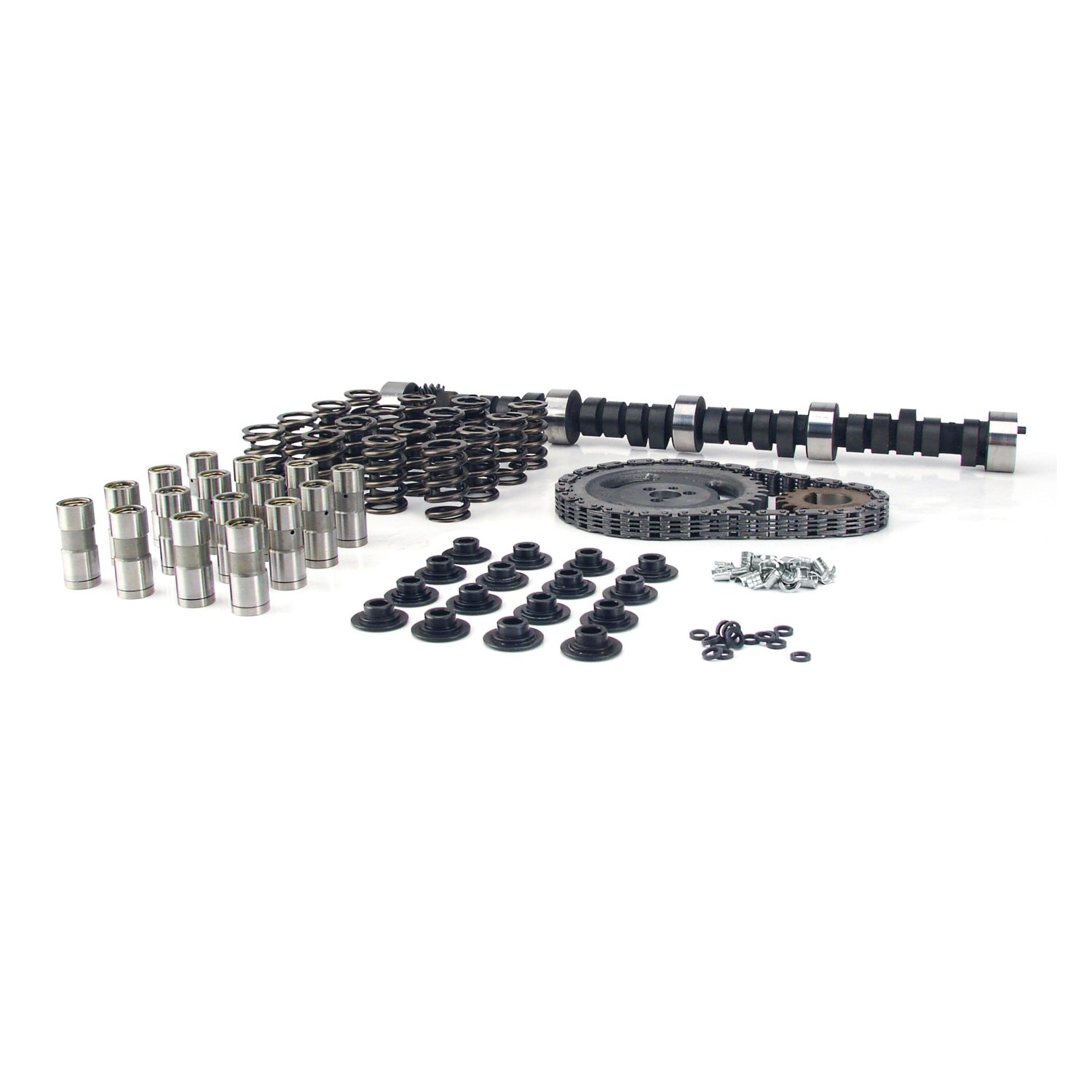

Xtreme Energy 224/230 Hydraulic Flat Cam K-Kit For Chevrolet Big Block 396-454

• GTIN: 00036584025382
• Brand Name: COMP Cams
• Advertised Exhaust Duration: 280
• Lobe Separation: 110
• Intake Valve Lift: 0.515
• Exhaust Valve Lift: 0.52
• Lifters Included: Yes
• Valve Springs Included: Yes
• Assembly Lubricant Included: Yes
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Cast Iron
• Lifter Type: Hydraulic Flat Tappet
• Gaskets Included: No
• Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
• Amazon ASIN: B000CEM5HU
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Kit Type: K-Kit - Complete Kit
• Camshaft Series: Xtreme Energy
• Usage: Street/Performance
• Cam Type: Hydraulic Flat Tappet
• Basic Operating RPM Range: 1,600-5,800
• Intake Duration at .050 Inch Lift: 224
• Exhaust Duration at .050 inch Lift: 230
• Advertised Intake Duration: 268

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 25.5 x 10.25 x 5 inches
• Weight: 27.1 lb
