COMP Cams

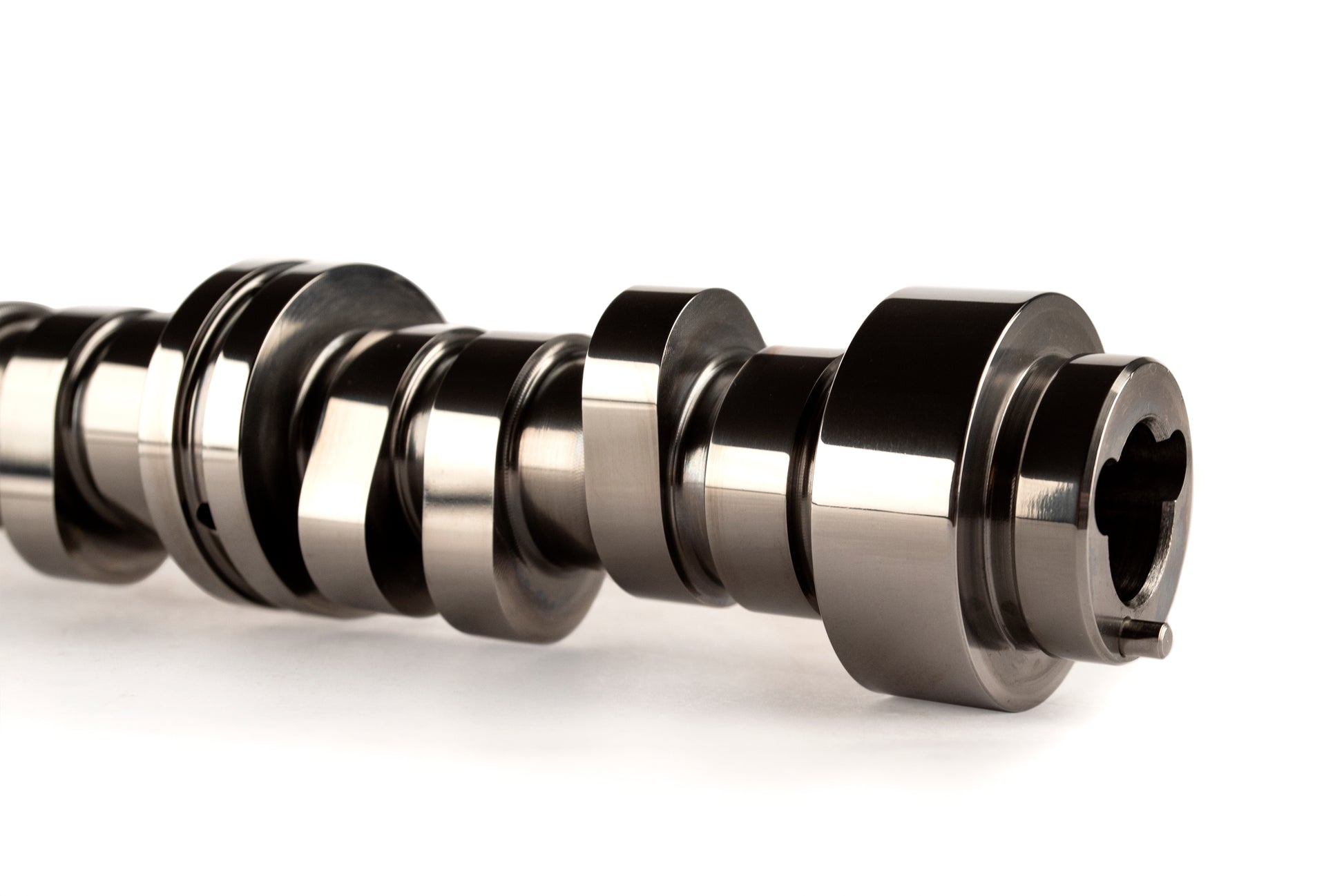

XFI AFM 220/232 D 218/230 N Hydraulic Roller Cam For GM LS GEN IV

XFI AFM 220/232 D 218/230 N Hydraulic Roller Cam For GM LS GEN IV

$515.95 USD
$515.95 USD $515.95 USD
Sale Sold out
  • GTIN: 00036584237938
  • Brand Name: COMP Cams
  • Camshaft Material: Billet Steel
  • Usage: Street/Performance
  • Intake Valve Lift Non-Deactivation Cylinders: 0.5
  • Intake Valve Lift Deactivation Cylinders: 0.5
  • Intake Duration at .050 Inch Lift Non-Deactivation Cylinders: 218
  • Intake Duration at .050 Inch Lift Deactivation Cylinders: 220
  • Advertised Exhaust Duration Deactivation Cylinders: 294
  • Exhaust Valve Lift Non-Deactivation Cylinders: 0.5
  • Advertised Exhaust Duration Non-Deactivation Cylinders: 282
  • Exhaust Duration at .050 inch Lift Non-Deactivation Cylinders: 230
  • Exhaust Duration at .050 inch Lift Deactivation Cylinders: 232
  • Advertised Intake Duration Non-Deactivation Cylinders: 270
  • Advertised Intake Duration Deactivation Cylinders: 282
  • Exhaust Valve Lift Deactivation Cylinders: 0.5
  • Engine Family: GM LS GEN IV Single Bolt w/ VVT (12606358) and w/ AFM 8 Cylinder (2008-2015)
  • C.A.R.B. E.O.: N/A
  • Amazon ASIN: B0066SUNUM
  • C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
  • C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
  • C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
  • C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
  • C.A.R.B. Exempt for On-Road Vehicles?: No
  • C.A.R.B. Exemption Reason: N/A
  • C.A.R.B. E.O. Number: N/A
  • Camshaft Series: XFI AFM
  • Grind Number: 270PIIHR15
  • Lobe Separation: 115
  • Lifters Included: No
  • Valve Springs Required: Yes
  • Assembly Lubricant Included: No
  • Camshaft Gear Attachment: 1-Bolt
  • Country of Origin: United States
  • Emissions : EPA Eligible
  • Life Cycle Status: Discontinued
  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 24.5 x 3 x 2.75 inches
  • Weight: 10 lb
