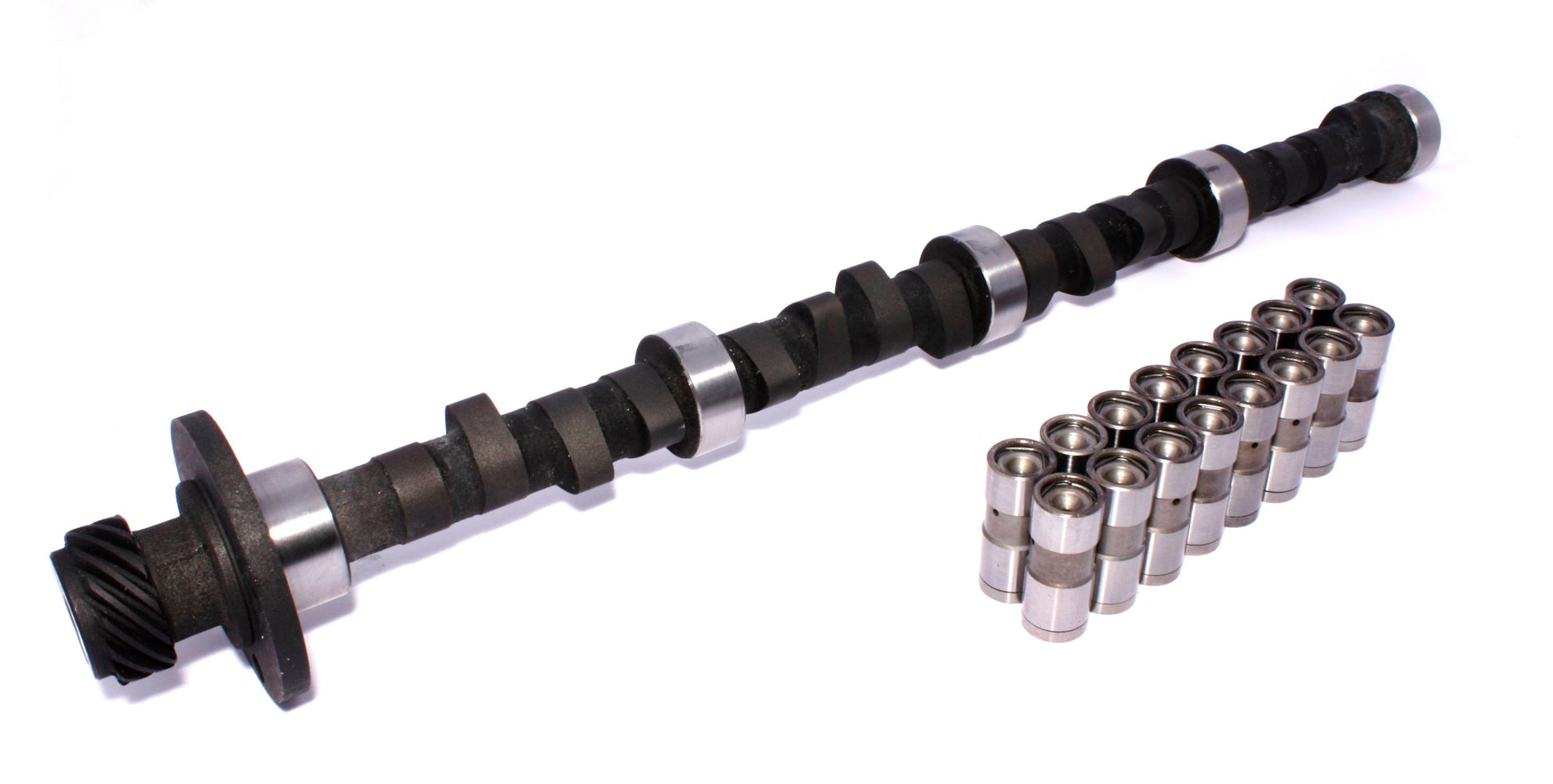

Magnum 224/224 Hydraulic Flat Cam And Lifter Kit For Cadillac 425 472 500

• GTIN: 00036584033967
• Brand Name: COMP Cams
• Kit Type: CL-Kit - Cam and Lifter Kit
• Camshaft Series: Magnum
• Cam Type: Hydraulic Flat Tappet
• Basic Operating RPM Range: 1,500-5,500
• Intake Duration at .050 Inch Lift: 224
• Exhaust Duration at .050 inch Lift: 224
• Advertised Intake Duration: 270
• Advertised Exhaust Duration: 270
• Lobe Separation: 110
• Intake Valve Lift: 0.516
• Exhaust Valve Lift: 0.516
• Lifters Included: Yes
• Valve Springs Required: Yes
• Assembly Lubricant Included: Yes
• Camshaft Gear Attachment: 1-Bolt
• Camshaft Material: Cast Iron
• Lifter Type: Hydraulic Flat Tappet
• Timing Chain and Gears Included: No
• Valve Stem Seals Included: No
• Retainers Included: No
• Locks Included: No
• Gaskets Included: No
• Engine Family: Cadillac 425, 472, 500 c.i. (1963-1979)
• Amazon ASIN: B001R9DUQ4
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 26.5 x 6 x 6 inches
• Weight: 15 lb
