JE Pistons

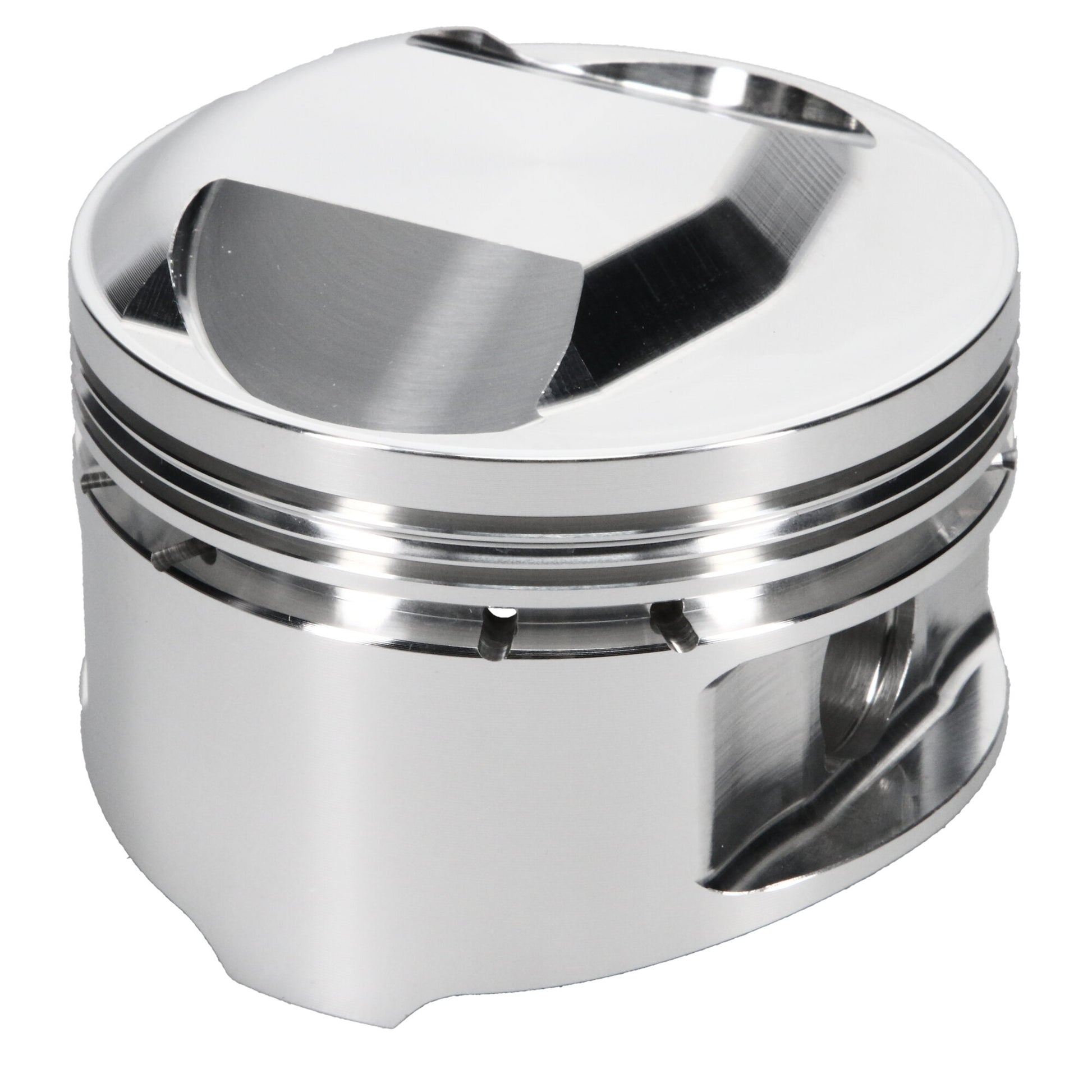

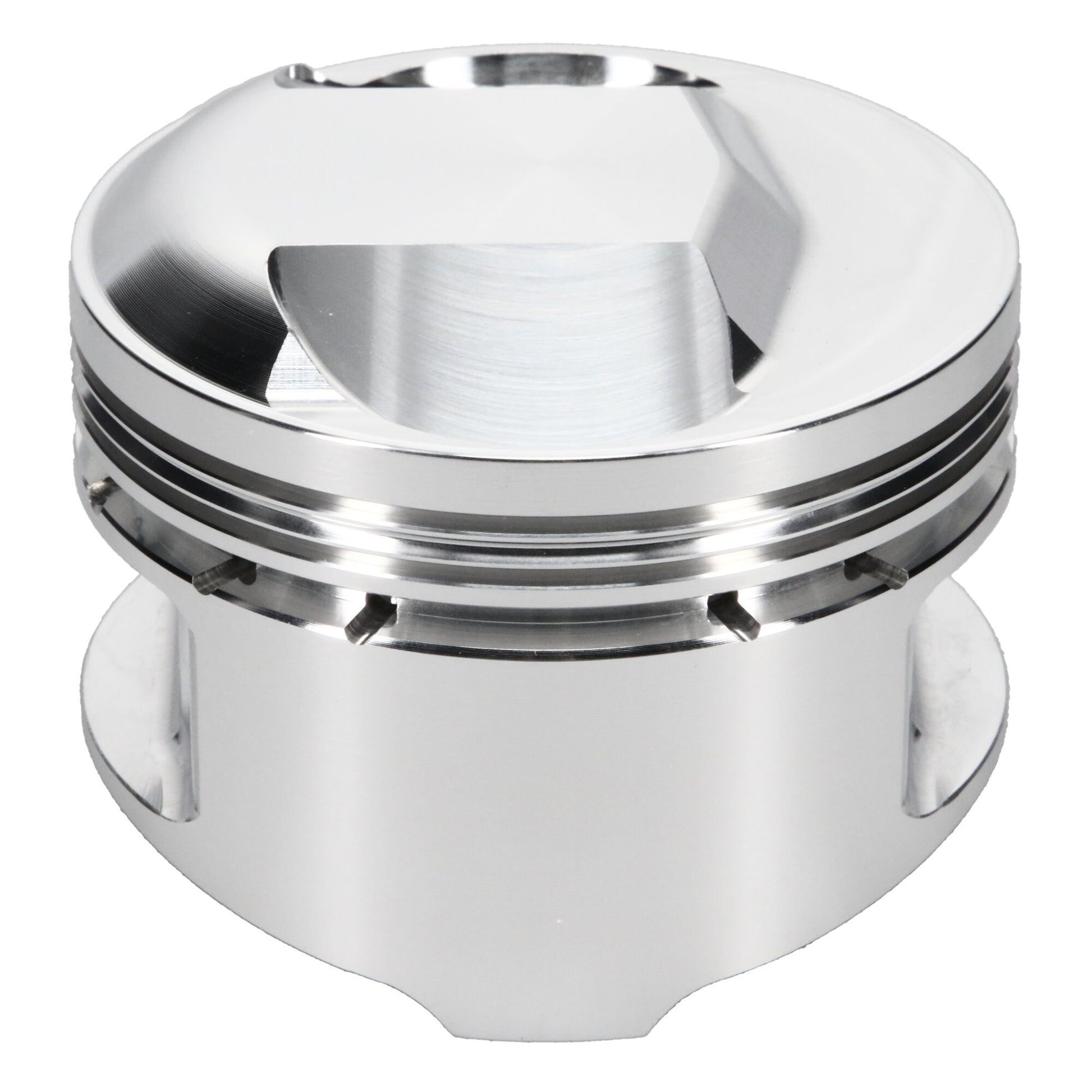

JE Harley Davidson 3.498 In. Bore 2 Cyl. Kit
JE Harley Davidson 3.498 In. Bore 2 Cyl. Kit
Regular price
$416.98 USD
Regular price
$490.56 USD
Sale price
$416.98 USD
Unit price
/
per
Couldn't load pickup availability
As the leader in forged racing pistons, JE Pistons has been at the forefront of V-Twin and Harley-Davidson piston performance for decades, with over 75 years of experience. JE?s carefully developed line of V-Twin pistons is engineered, forged and machined 100% in the USA and are designed for each specific engine and use application to provide the ultimate combination of durability and performance. From fun and powerful cruisers to all-out V-Twin drag racing, JE Pistons? performance is proven with every handful of throttle. Equip your bike with the best in forged pistons.
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
Attributes
Attributes
- GTIN: 00193564027368
- Brand Name: JE Pistons
- Add-On: J140F1-3498
- Add-On: 792-2500-14-51C
- Add-On: 787-050-MW
- Bore Diameter: 88.50
- Compression Ratio Actual: 10.00:1
- Cylinder Head: EVOLUTION
- Engine Type: ICE
- Forging Type: Round
- Industry: Powersports
- Oil Ring Thickness: 0.159
- Out of Stock Message: Call for Availability
- Piston Average Weight: 393
- Piston Head Type: Dome
- Piston Material: 2618
- Piston Series: JE Pistons
- Piston Volume: 0.00
- Product Market: V-Twin
- Product Type: Engine Piston Kit
- Ring Set Included: Yes
- Second Compression Ring Thickness: 0.0640
- Top Compression Ring Thickness: 0.0640
- Wrist Pin Length: 2.500
- Wrist Pin Material: 5115
- Wrist Pin Outer Diameter: 0.792
- Wrist Pin Wall Thickness: 0.140
Extended Information
Extended Information
- Country of Origin: United States
- Emissions : Racing or Pre-Emissions Use Only
- Life Cycle Status: Available To Order
Packing Information
Packing Information
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 5.000 x 5.000 x 5.000 inches
- Weight: 2.800 lb
