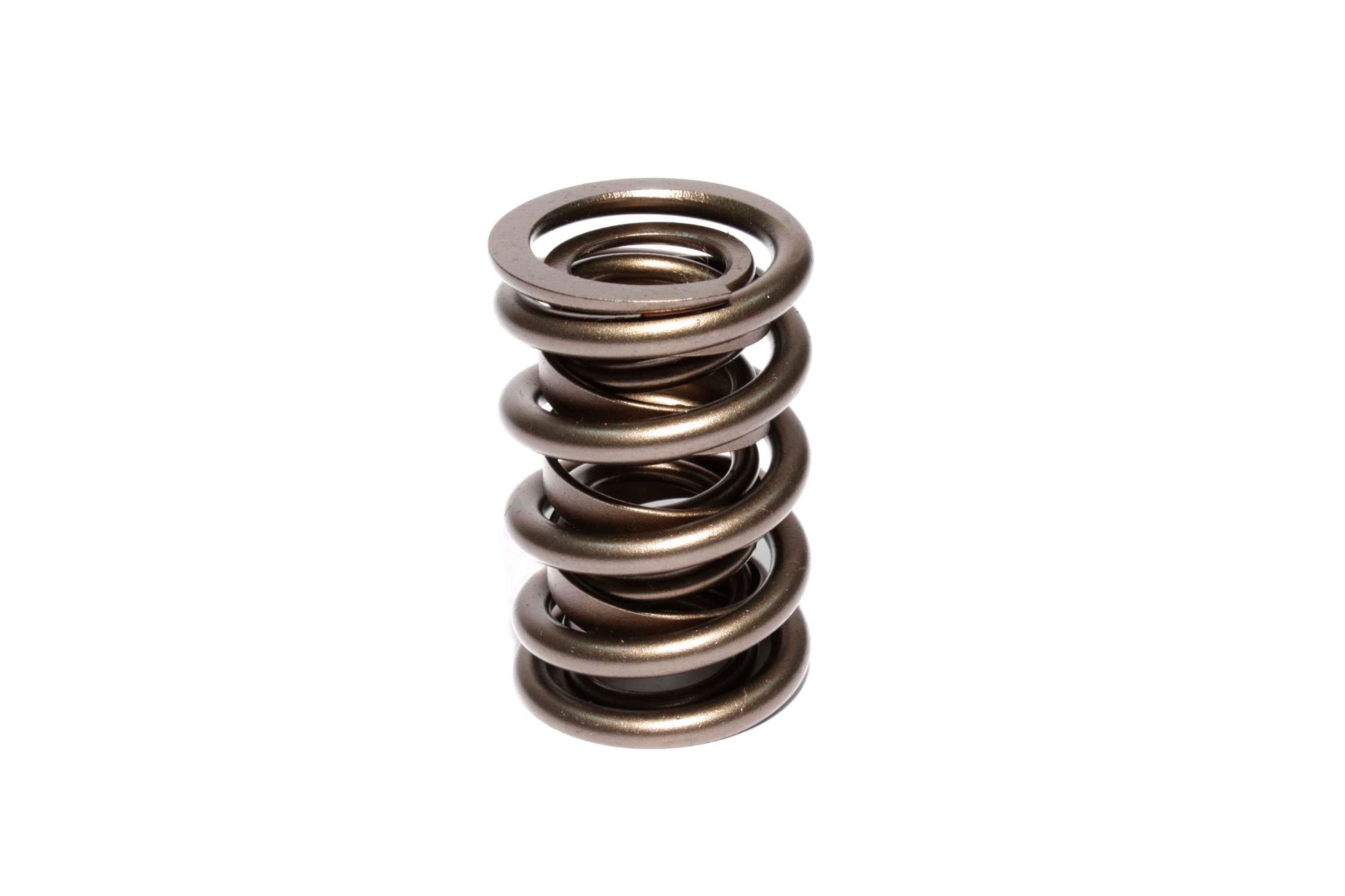

Engine Valve Spring

• GTIN: 00036584270775
• Brand Name: COMP Cams
• Coil Bind Height: 1.17
• Compatible .570" Guide Diameter Spring Seat: 4781-1
• Compatible .630" Guide Diameter Spring Seat: 4782-1
• Compatible Retainer: 741-1
• Compatible Shims: 4757
• Compatible Spring Cup (O.D. Locator): 4700-1
• Damper: Yes
• Inner Spring Inside Diameter: 0.72
• Number of Springs: 2
• Outer Spring Inside Diameter: 1.112
• Outer Spring Outside Diameter: 1.536
• Seat Height: 1.9
• Seat Pressure: 210
• Spring Rate: 483
• Amazon ASIN: B00062YH9M
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
• C.A.R.B. E.O. Number: N/A

• Country of Origin: United States
• Life Cycle Status: Available To Order
• Emissions : CARB Eligible

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6 x 4 x 1.3 inches
• Weight: 0.35 lb
