Bilstein

Bilstein Shock Absorbers

Bilstein Shock Absorbers

$192.00 USD
$192.00 USD $192.00 USD
Sale Sold out

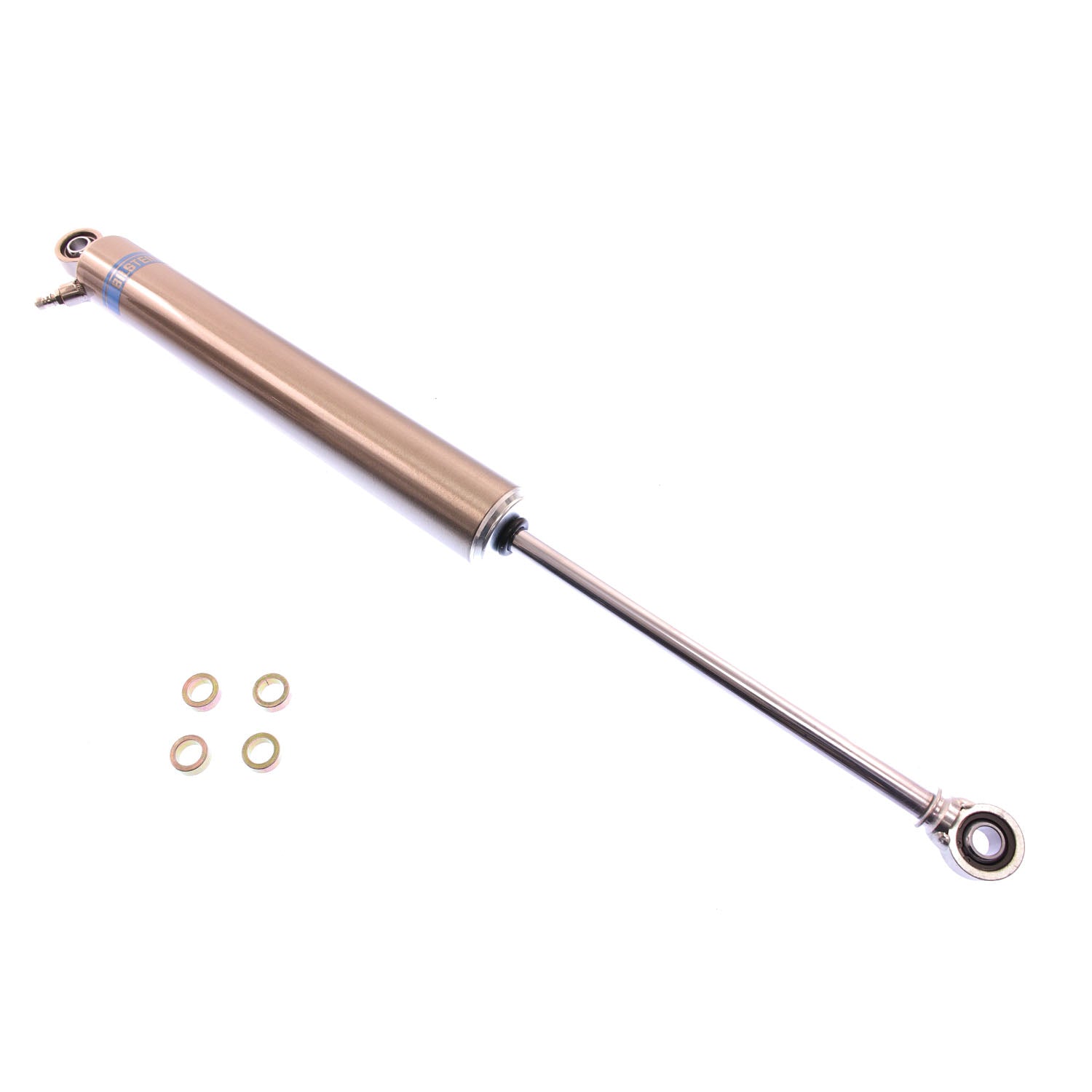

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.
  • GTIN: 00790832512078
  • Brand Name: Bilstein
  • Body Diameter (ID): 46mm
  • Lower Mount Type: 1/2in Heim
  • Extended Length (IN): 16.04
  • Spring Seat Included: No
  • Upper Mount Type: 1/2in Heim
  • Mount Type: Eye-to-Eye
  • Extended Length (IN) Rounded: 16
  • Body Design: Smooth Body (Non-Coilover)
  • Rebound @0.52m/s: 3450
  • Reservoir: No
  • Compression @0.52m/s: 1350
  • Extended Length (MM): 407.4
  • Series: M 7100
  • Internal Design: Monotube
  • Finish: Nickel Plated with Clear Powder Coat
  • Collapsed Length (IN): 10.81
  • Optional Reservoir Clamp: N/A
  • Collapsed Length (IN) Rounded: 11
  • Collapsed Length (MM): 274.6
  • Country of Origin: United States
  • Emissions : CARB Eligible
  • Life Cycle Status:
  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 26.0000 x 2.7500 x 2.5000 inches
  • Weight: 3.7300 lb
