Bilstein
Bilstein Shock Absorbers
Bilstein Shock Absorbers
Regular price
$1,719.00 USD
Regular price
$1,719.00 USD
Sale price
$1,719.00 USD
Unit price
/
per
Couldn't load pickup availability

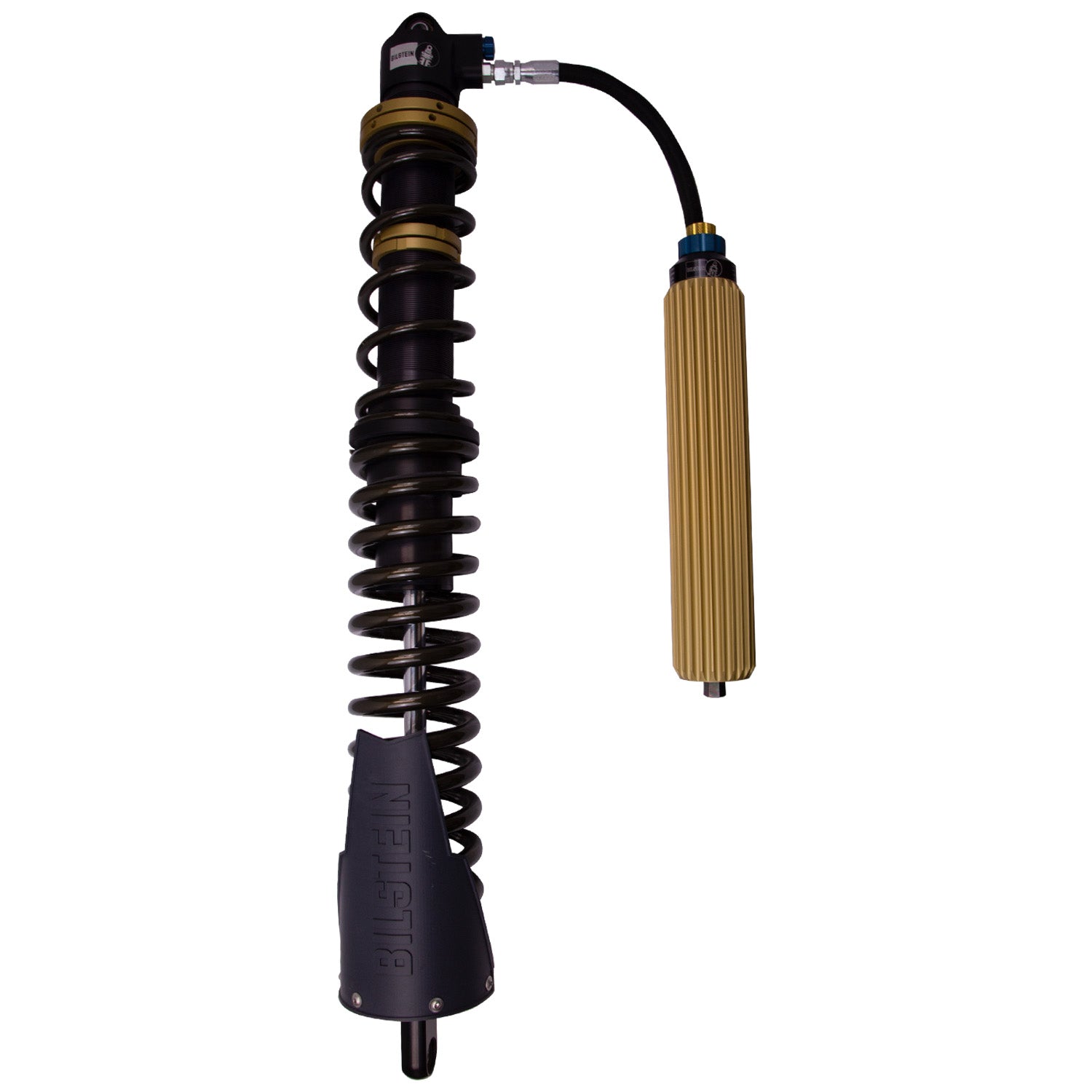

Bilstein Black Hawk Powersports coilovers are specifically engineered to vastly improve the performance of your UTV. These direct fit coilovers offer position sensitive damping and 4-way adjustability, all features that will take your UTV to the next level. Black Hawk Powersports feature Bilstein’s patented ZoneControl position sensitive technology that contains 5 independently tuned damping zones; 3 Compression and 2 Rebound. ZoneControl incorporates an internal Jounce Cut Off system (JCO) which is effectively a 2-Stage hydraulic bump stop. The JCO has a 10-position clicker that allows the rider to fine tune bottom out control. For Rebound, ZoneControl features a Rebound Cut Off (RCO) that acts to settle the vehicle at the final stage of suspension droop. The RCO will protect the damper, eliminating the need for a limit strap. Black Hawk Powersports offer 4 unique external adjustments; High/Low speed compression, rebound, and JCO. All easily accessible and ready for quick damping changes on the fly. Bilstein Black Hawk powersports are an all-aluminum design with gold finned reservoirs. All applications come with Dual Rate Coils and crossover nuts for easy ride height and spring preload adjustments. Black Hawk Powersports are completely serviceable and designed to be race ready right out of the box. This extremely versatile coilover package will provide excellent comfort and unsurpassed bottom out control. Experience a unique “bottomless” ride with Bilstein’s new Black Hawk Powersports coilover packages.
Attributes
Attributes
- GTIN: 00651860907833
- Brand Name: Bilstein
- Extended Length (IN): 41.80
- Collapsed Length (MM): 730.8
- Finish: Type III Hard Anodized
- Collapsed Length (IN): 28.77
- Extended Length (MM): 1061.8
- Compression @0.52m/s: Adjustable
- Internal Design: Monotube
- Body Material: Aluminum alloy
- Model: Maverick X3
- Billet Reservoir Clamp Included: Yes
- Series: Black Hawk Powersports
- Make: Can-Am
- Rebound @0.52m/s: Adjustable
- Upper Mount Type: Eye 12mm (ID)
- Boot Included: No
- Reservoir: Yes
- Adjustable Damping: 4-Way Adjustable - High and Low Speed Compression, Rebound, JCO-Jounce Cut-Off (Hydraulic Bump)
- Position: Rear Left
- Body Design: Threaded Body
- Lower Mount Type: Eye 12mm (ID)
Extended Information
Extended Information
- Country of Origin: United States
- Emissions : CARB Eligible
- Life Cycle Status:
Packing Information
Packing Information
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 50.8125 x 16.3750 x 8.5625 inches
- Weight: 46.0000 lb
