Bilstein
Bilstein Shock Absorbers
Bilstein Shock Absorbers
Regular price
$633.00 USD
Regular price
$633.00 USD
Sale price
$633.00 USD
Unit price
per
Couldn't load pickup availability

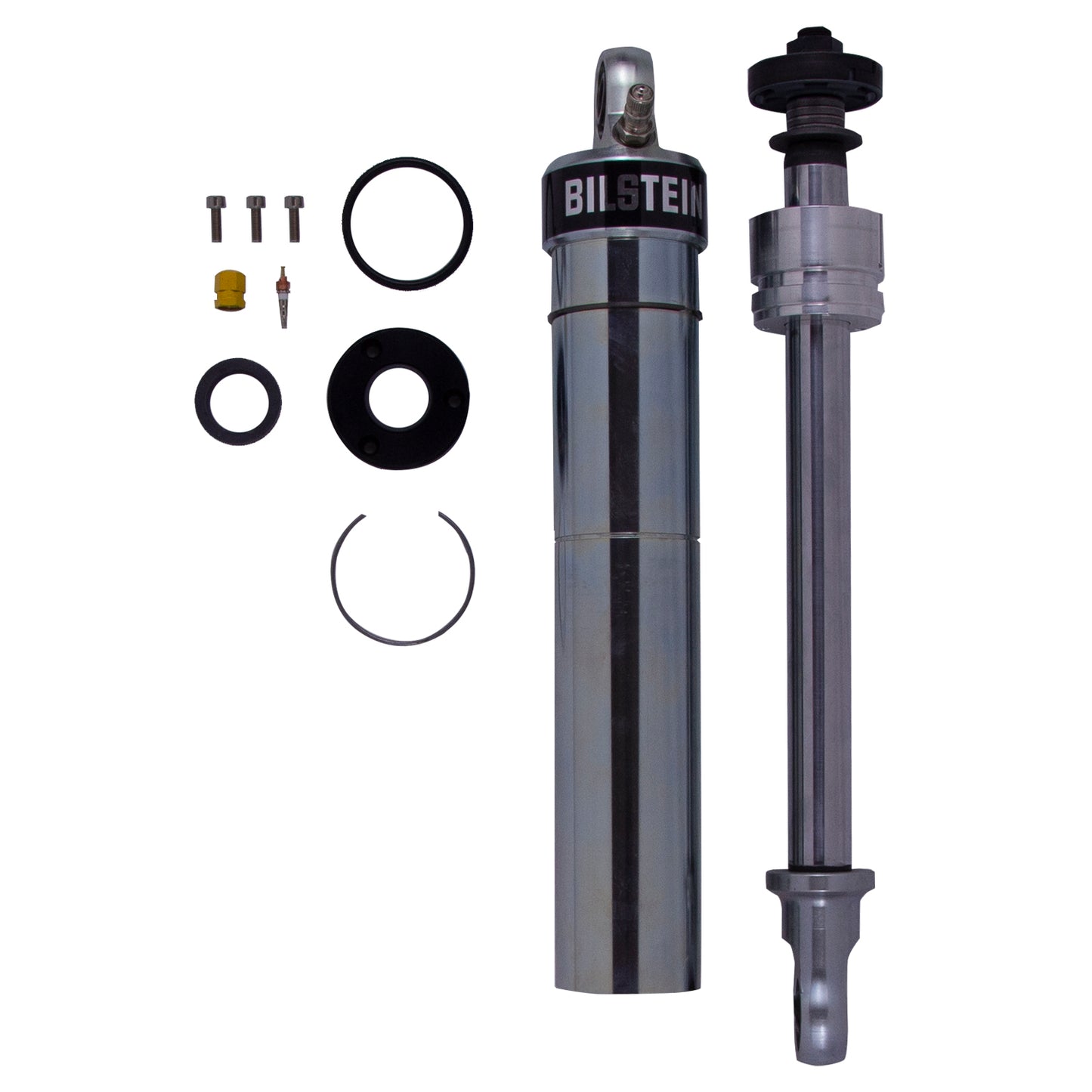

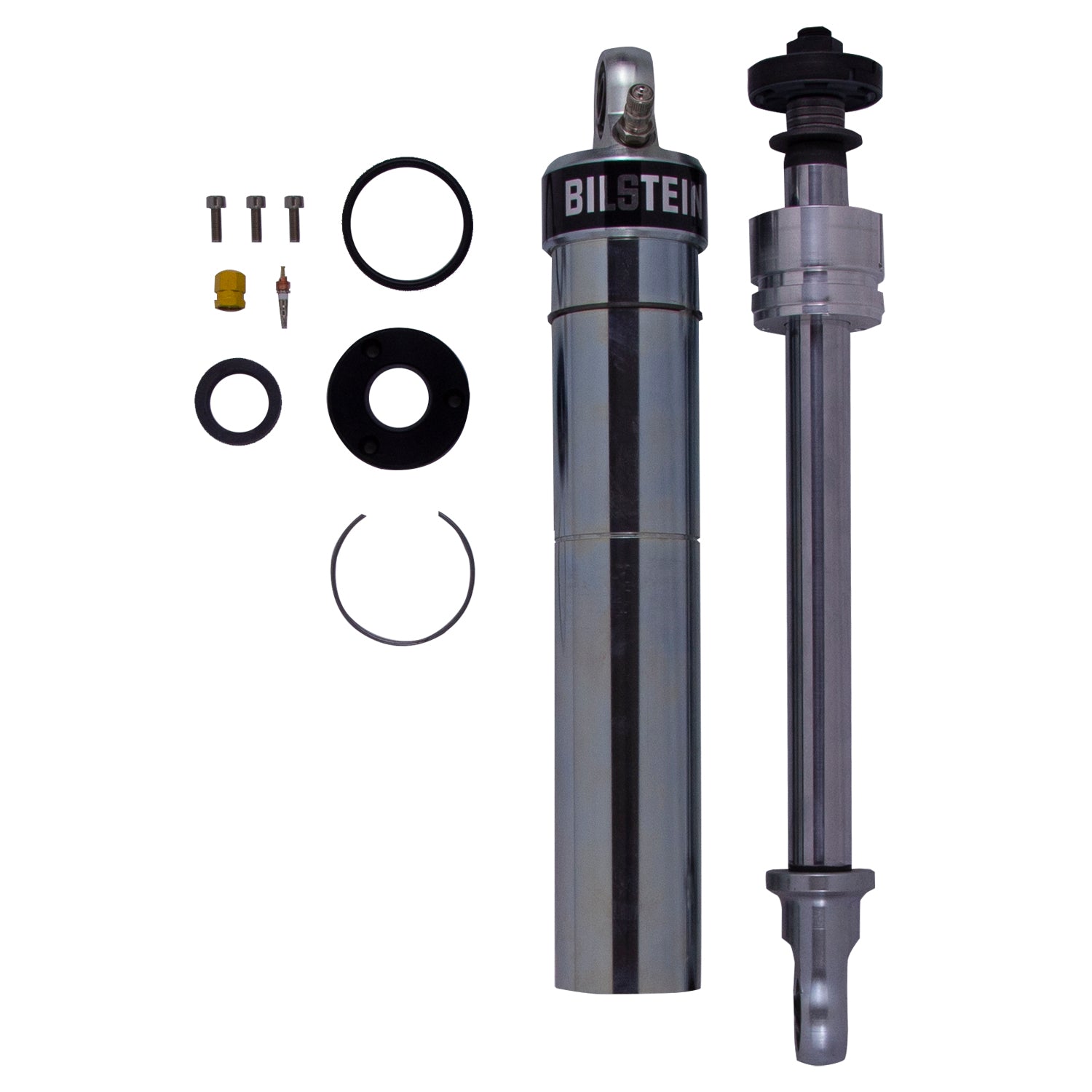

Bilstein EM46 Series shock absorbers are emulsion dampers that feature an all-steel smooth body construction and 46mm piston for motorsports applications. The shock absorbers also include a large 22mm shaft, severe duty 3 stage high temperature rod seal and can convert to coilover usage (kit sold separately). EM46 Series shock absorbers are ideal for racers looking for a rebuildable shock with the ability to create and fine tune spring rate as a replacement or supplement for suspension springs.
Attributes
Attributes
- GTIN: 00651860825014
- Brand Name: Bilstein
- Finish: Zinc Plated
- Piston Type: Digressive
- Collapsed Length (MM): 359.3
- Spring Seat Included: No
- Upper Mount Type: 1/2in Heim
- Extended Length (MM): 562.8
- Internal Design: Monotube
- Extended Length (IN): 22.16
- Adjustable Damping: Non-Adjustable
- Collapsed Length (IN): 14.15
- Lower Mount Type: 1/2in Heim
- Body Material: Steel
- Series: EM46 Series
- Boot Included: No
- Body Design: Smooth Body Screw Top (Non-coilover)
- Valving Identifier: Digressive Dry Kit (no valving)
- Body Diameter (ID): 46mm
Extended Information
Extended Information
- Country of Origin: United States
- Emissions : CARB Eligible
- Life Cycle Status:
Packing Information
Packing Information
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 26.8000 x 2.9500 x 2.9500 inches
- Weight: 5.2000 lb
