Bilstein

Bilstein Shock Absorbers

Bilstein Shock Absorbers

$1,059.00 USD
$1,059.00 USD $1,059.00 USD
Sale Sold out

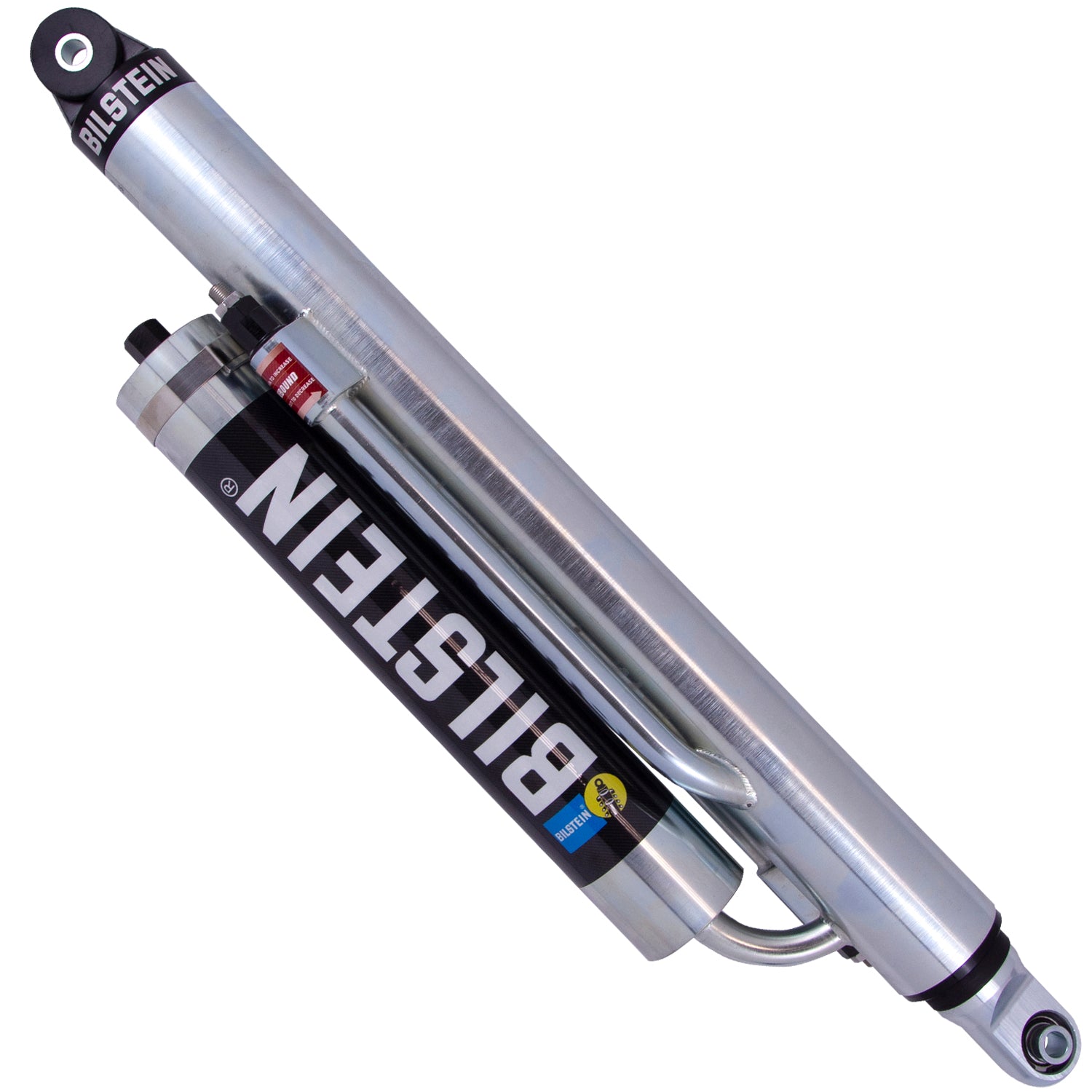

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
  • GTIN: 00651860796765
  • Brand Name: Bilstein
  • Extended Length (IN) Rounded: 43
  • Extended Length (IN): 42.50
  • Collapsed Length (IN): 26.50
  • Body Design: 3-Tube Bypass Screw Top
  • Upper Mount Type: Eye .5x1.5in
  • Series: M 9200 (Bypass)
  • Position: Left
  • Collapsed Length (MM): 673.1
  • Extended Length (MM): 1079.5
  • Reservoir: Yes
  • Rebound @0.52m/s: Custom
  • Compression @0.52m/s: Custom
  • Collapsed Length (IN) Rounded: 27
  • Lower Mount Type: Eye .5x1.5in
  • Optional Reservoir Clamp: N/A
  • Body Diameter (ID): 60mm
  • Internal Design: Monotube
  • Finish: Zinc Plated
  • Boot Included: N/A
  • Spring Seat Included: No
  • Mount Type: Eye-to-Eye
  • Country of Origin: United States
  • Emissions : CARB Eligible
  • Life Cycle Status:
  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 33.5000 x 11.8800 x 8.8800 inches
  • Weight: 29.1000 lb

PDF:
