Bilstein
Bilstein Shock Absorbers
Bilstein Shock Absorbers
Regular price
$1,037.00 USD
Regular price
$1,037.00 USD
Sale price
$1,037.00 USD
Unit price
per
Couldn't load pickup availability

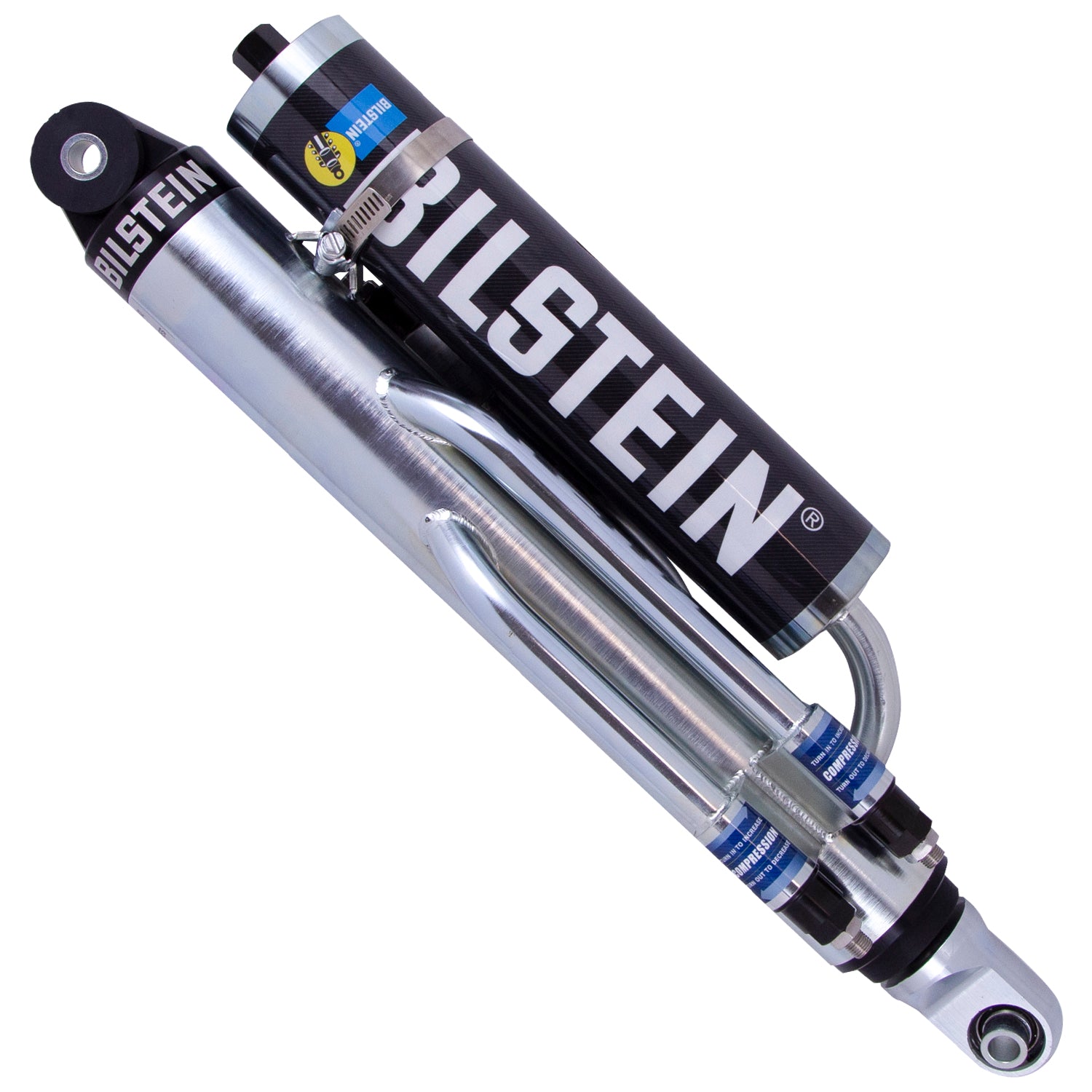

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
Attributes
Attributes
- GTIN: 00651860804309
- Brand Name: Bilstein
- Spring Seat Included: No
- Collapsed Length (IN): 19.50
- Collapsed Length (IN) Rounded: 20
- Collapsed Length (MM): 495.3
- Position: Left
- Boot Included: N/A
- Extended Length (IN): 29.50
- Optional Reservoir Clamp: N/A
- Extended Length (IN) Rounded: 30
- Series: M 9200 (Bypass)
- Upper Mount Type: Eye .5x1.5in
- Reservoir: Yes
- Body Diameter (ID): 60mm
- Body Design: 3-Tube Bypass Screw Top
- Internal Design: Monotube
- Finish: Zinc Plated
- Rebound @0.52m/s: Custom
- Lower Mount Type: Eye .5x1.5in
- Mount Type: Eye-to-Eye
- Extended Length (MM): 749.3
- Compression @0.52m/s: Custom
Extended Information
Extended Information
- Country of Origin: United States
- Emissions : CARB Eligible
- Life Cycle Status:
Packing Information
Packing Information
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 33.5000 x 11.8800 x 8.8800 inches
- Weight: 23.7000 lb
