Bilstein
Bilstein Shock Absorbers
Bilstein Shock Absorbers
Regular price
$725.00 USD
Regular price
$725.00 USD
Sale price
$725.00 USD
Unit price
per
Couldn't load pickup availability

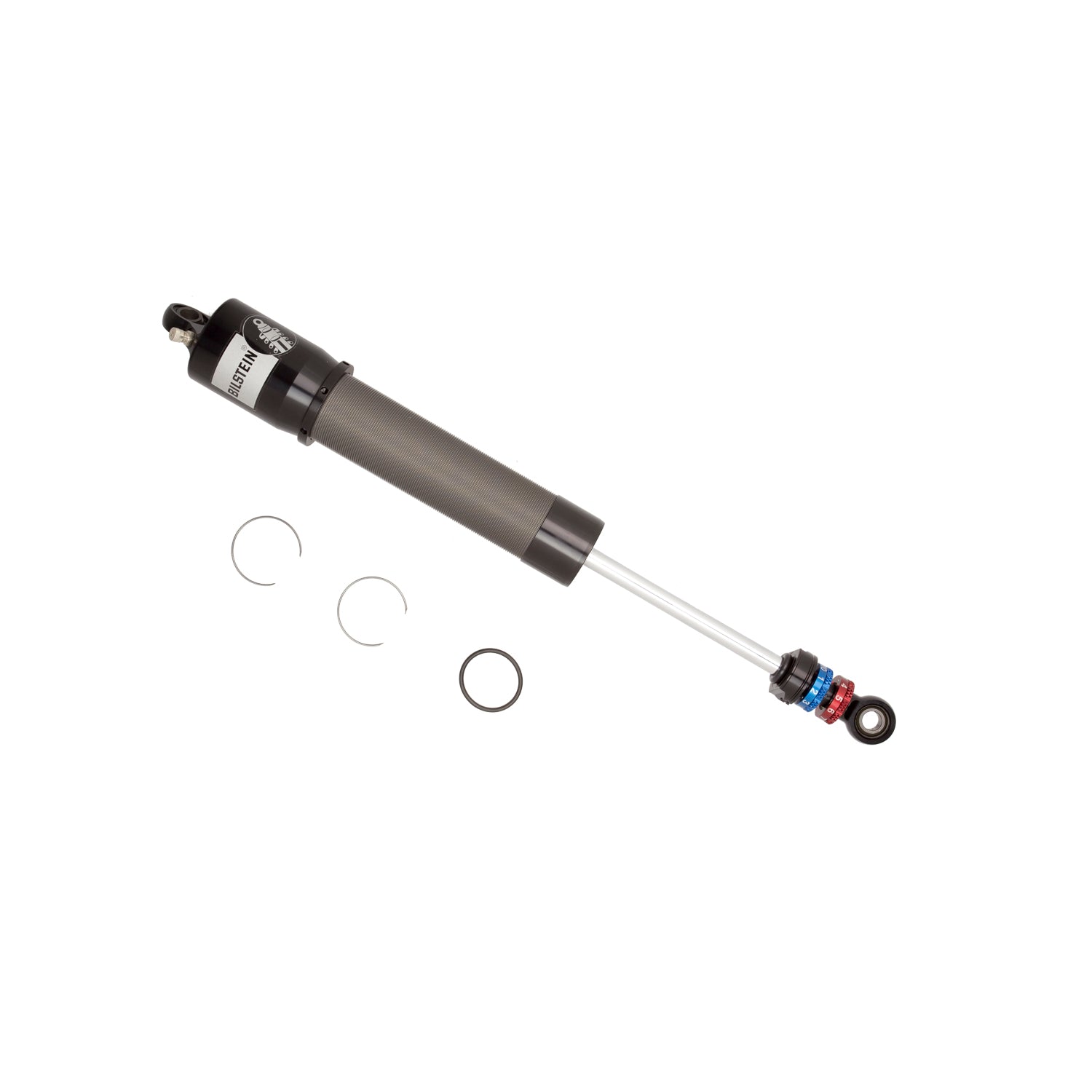

Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.
Attributes
Attributes
- GTIN: 00651860779720
- Brand Name: Bilstein
- Internal Design: Monotube
- Spring Seat Included: No
- Collapsed Length (IN): 14.56
- Extended Length (IN): 20.65
- Piston Type: Linear
- Extended Length (MM): 524.4
- Lower Mount Type: 1/2in Heim
- Finish: Clear Anodized
- Boot Included: No
- Upper Mount Type: 1/2in Heim
- Valving Identifier: Linear Dry Kit (no valving)
- Adjustable Damping: Double Adjustable – Compression and Rebound
- Body Diameter (ID): 46mm
- Body Design: Threaded Body Large Bulb Screw Top (Coilover)
- Body Material: Aluminum
- Collapsed Length (MM): 369.7
- Series: XVA Series
Extended Information
Extended Information
- Country of Origin: United States
- Emissions : CARB Eligible
- Life Cycle Status:
Packing Information
Packing Information
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 26.8000 x 2.9500 x 2.9500 inches
- Weight: 2.9100 lb
