Bilstein Shock Absorbers
Bilstein Shock Absorbers
Regular price
$725.00 USD
Regular price
$725.00 USD
Sale price
$725.00 USD
Unit price
per
Couldn't load pickup availability

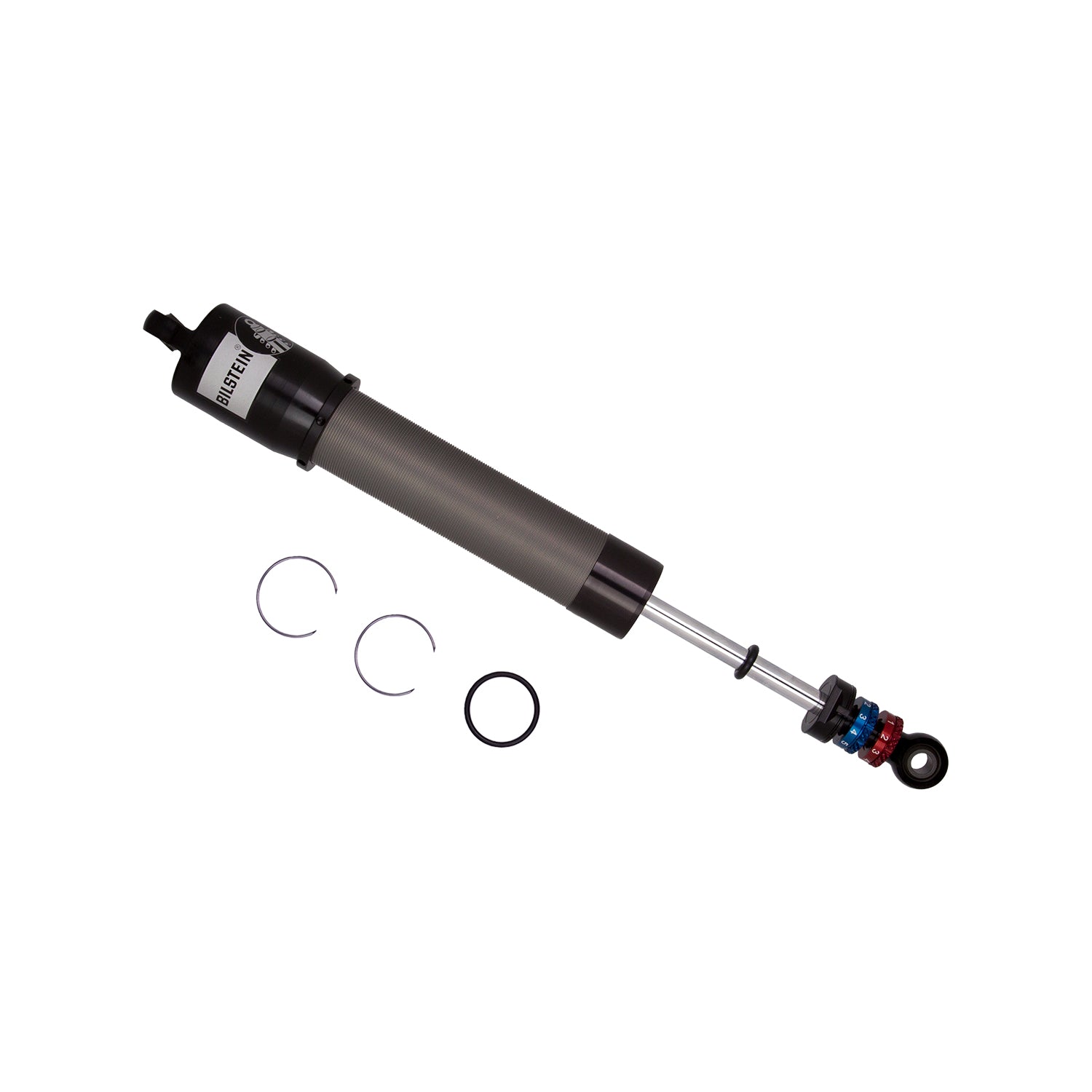

Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.
Attributes
Attributes
- GTIN: 00651860779782
- Brand Name: Bilstein
- Collapsed Length (IN): 15.45
- Adjustable Damping: Double Adjustable – Compression and Rebound
- Extended Length (MM): 566.5
- Piston Type: Digressive
- Collapsed Length (MM): 392.5
- Internal Design: Monotube
- Upper Mount Type: 1/2in Heim
- Extended Length (IN): 22.30
- Body Material: Aluminum
- Boot Included: No
- Finish: Clear Anodized
- Spring Seat Included: No
- Body Diameter (ID): 46mm
- Lower Mount Type: 1/2in Heim
- Body Design: Threaded Body Large Bulb Screw Top (Coilover)
- Valving Identifier: Digressive Dry Kit (no valving)
- Series: XVA Series
Extended Information
Extended Information
- Country of Origin: United States
- Emissions : CARB Eligible
- Life Cycle Status:
Packing Information
Packing Information
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 26.8000 x 2.9500 x 2.9500 inches
- Weight: 2.9500 lb
