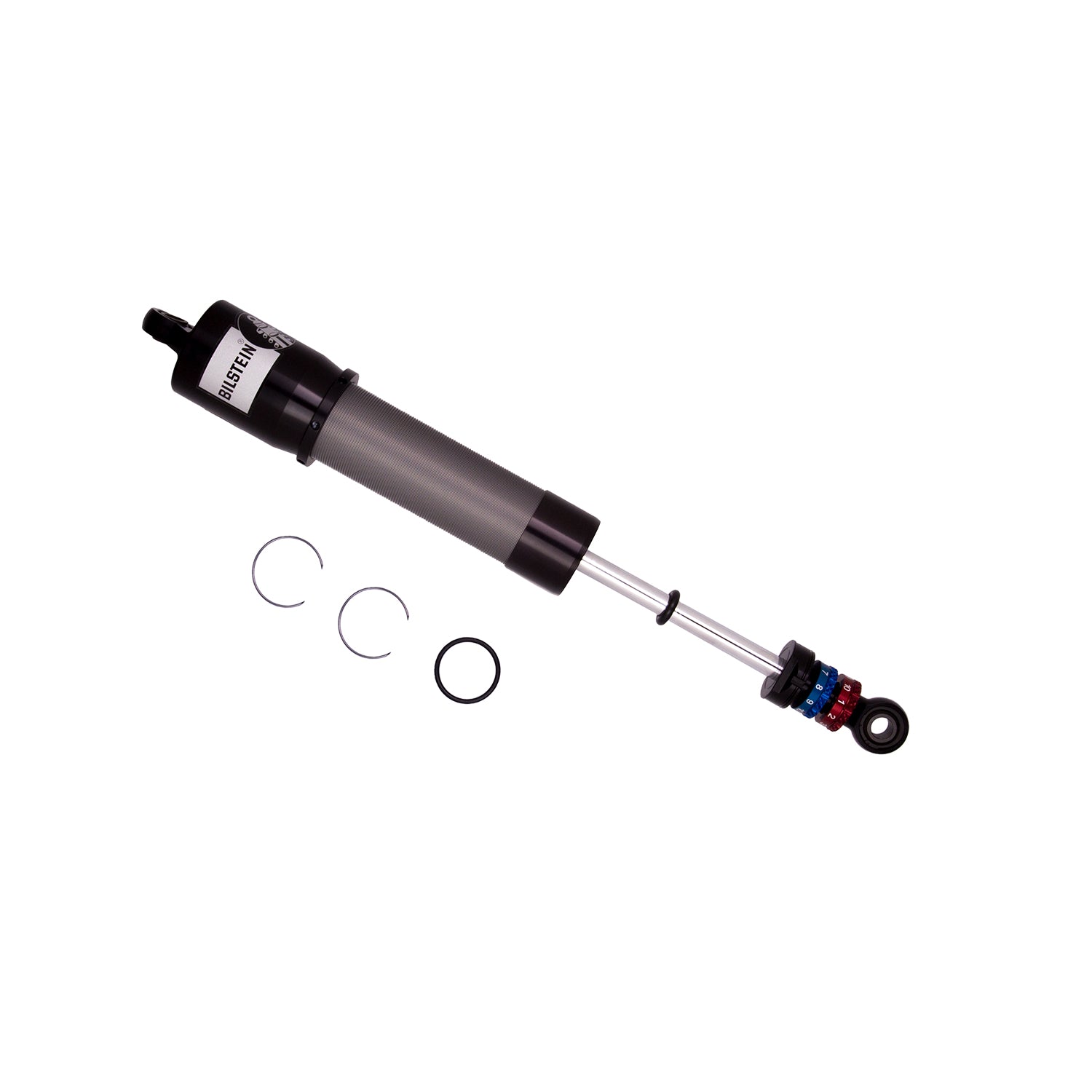

Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.
Attributes
Attributes
- GTIN: 00651860779591
- Brand Name: Bilstein
- Series: XVA Series
- Extended Length (MM): 483.0
- Body Material: Aluminum
- Collapsed Length (IN): 13.74
- Internal Design: Monotube
- Valving Identifier: Digressive Dry Kit (no valving)
- Adjustable Damping: Double Adjustable – Compression and Rebound
- Extended Length (IN): 19.02
- Body Design: Threaded Body Large Bulb Screw Top (Coilover)
- Piston Type: Digressive
- Collapsed Length (MM): 349.0
- Spring Seat Included: No
- Finish: Clear Anodized
- Lower Mount Type: 1/2in Heim
- Body Diameter (ID): 46mm
- Boot Included: No
- Upper Mount Type: 1/2in Heim
Extended Information
Extended Information
- Country of Origin: United States
- Emissions : CARB Eligible
- Life Cycle Status:
Packing Information
Packing Information
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 22.4500 x 2.9500 x 2.9500 inches
- Weight: 2.9500 lb
