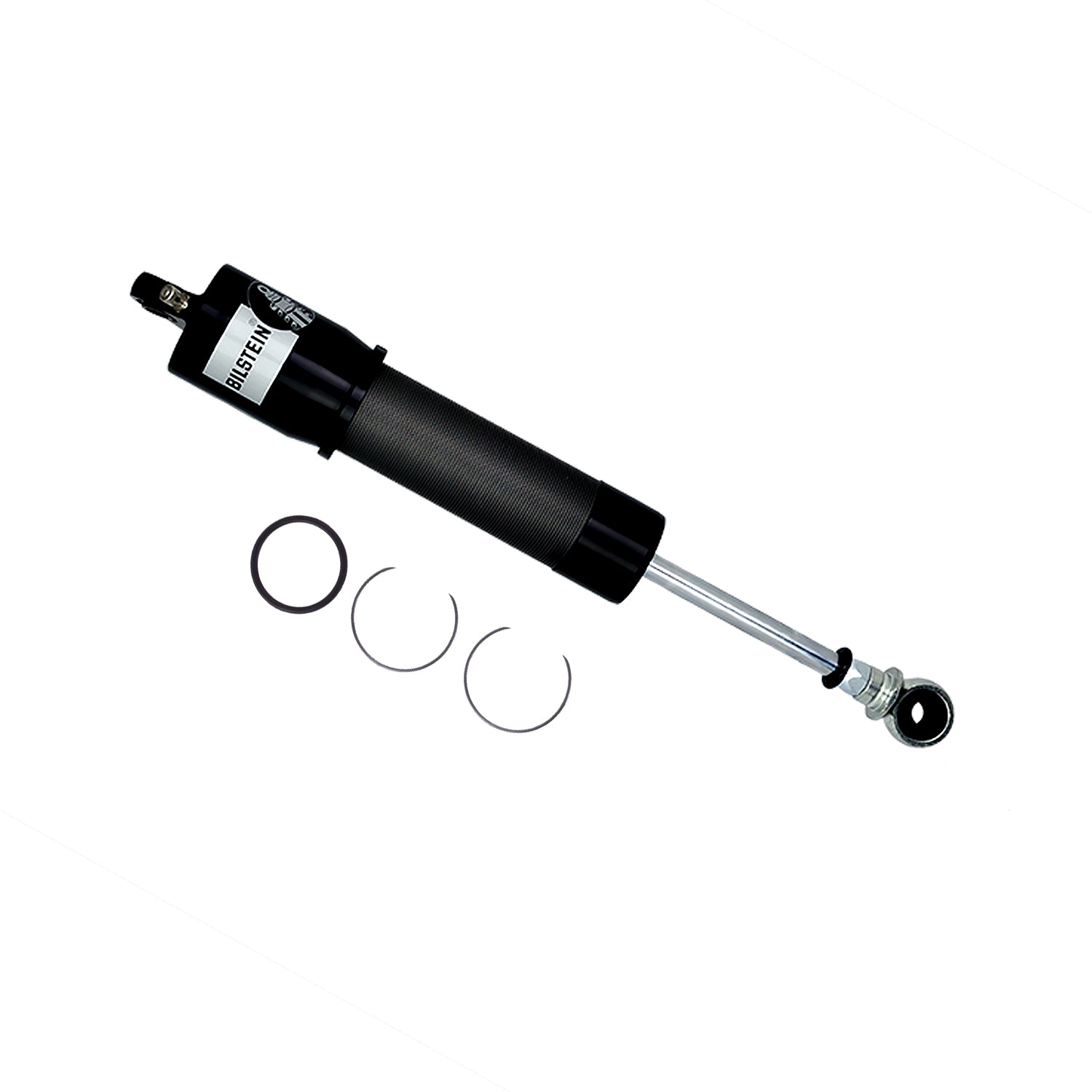

Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.
Attributes
Attributes
- GTIN: 00651860773988
- Brand Name: Bilstein
- Extended Length (IN): 16.81
- Internal Design: Monotube
- Adjustable Damping: Non-Adjustable
- Body Material: Aluminum
- Lower Mount Type: 1/2in Heim
- Body Design: Threaded Body Large Bulb Screw Top (Coilover)
- Finish: Clear Anodized
- Spring Seat Included: No
- Extended Length (MM): 427.0
- Boot Included: No
- Collapsed Length (IN): 11.93
- Piston Type: Linear
- Valving Identifier: Linear Dry Kit (no valving)
- Upper Mount Type: 1/2in Heim
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 303.0
- Series: XVA Series
Extended Information
Extended Information
- Country of Origin: United States
- Emissions : CARB Eligible
- Life Cycle Status:
Packing Information
Packing Information
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 26.8000 x 2.9500 x 2.9500 inches
- Weight: 2.7600 lb
