Bilstein

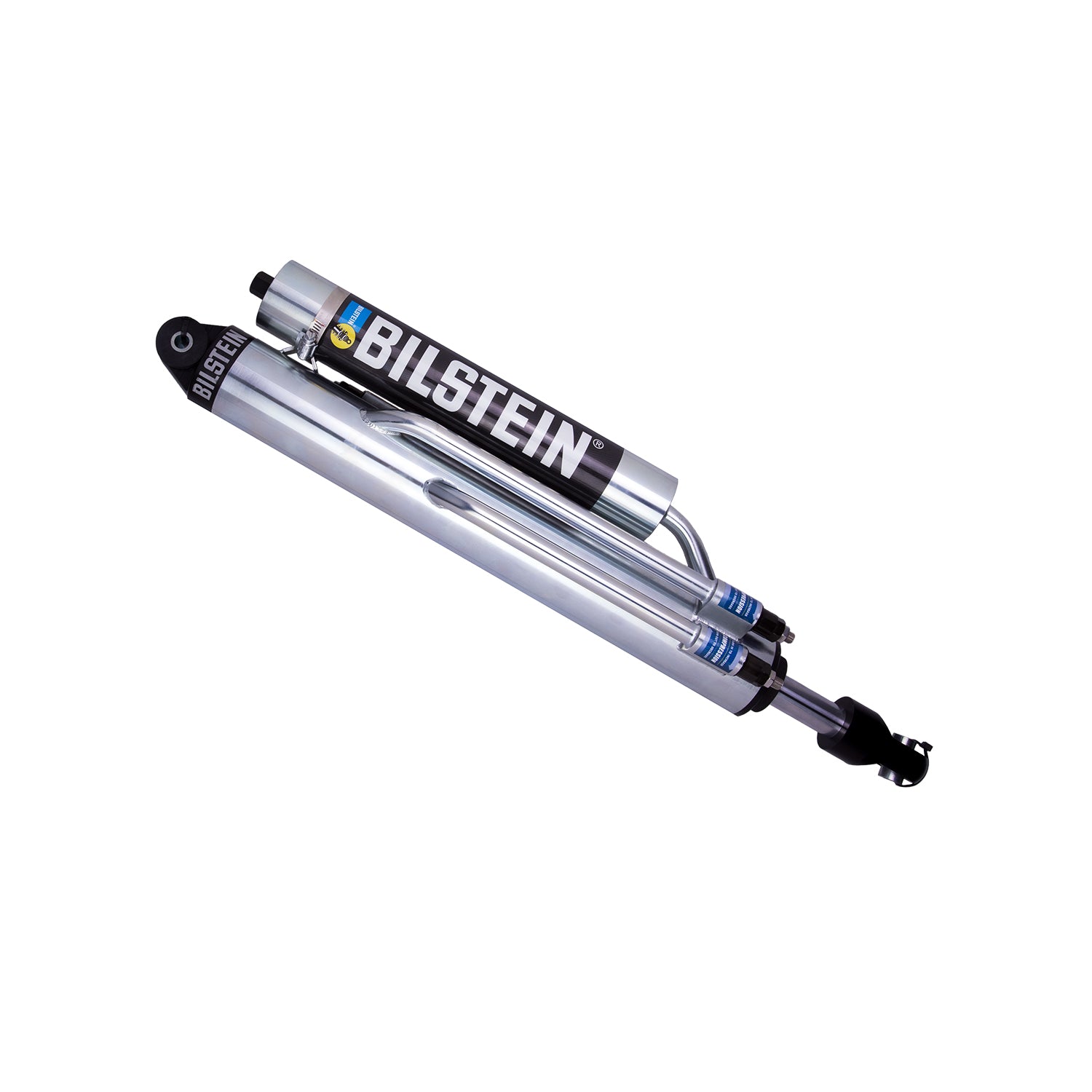

Bilstein Shock Absorbers

Bilstein Shock Absorbers

$1,476.00 USD
$1,476.00 USD $1,476.00 USD
Sale Sold out
Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
  • GTIN: 00651860766928
  • Brand Name: Bilstein
  • Spring Seat Included: No
  • Boot Included: N/A
  • Collapsed Length (IN): 24.50
  • Upper Mount Type: Eye .5x1.5in
  • Lower Mount Type: Eye .5x1.5in
  • Collapsed Length (IN) Rounded: 25
  • Mount Type: Eye-to-Eye
  • Body Diameter (ID): 70mm
  • Collapsed Length (MM): 622.3
  • Body Design: 4-Tube Bypass Screw Top
  • Rebound @0.52m/s: Custom
  • Compression @0.52m/s: Custom
  • Series: M 9200 (Bypass)
  • Extended Length (MM): 977.9
  • Optional Reservoir Clamp: N/A
  • Internal Design: Monotube
  • Reservoir: Yes
  • Extended Length (IN) Rounded: 39
  • Finish: Zinc Plated
  • Extended Length (IN): 38.50
  • Position: Left
  • Country of Origin: United States
  • Emissions : CARB Eligible
  • Life Cycle Status:
  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 33.5000 x 11.8800 x 8.8800 inches
  • Weight: 34.5900 lb
