Bilstein

Bilstein Shock Absorbers

Bilstein Shock Absorbers

$1,348.00 USD
$1,348.00 USD $1,348.00 USD
Sale Sold out

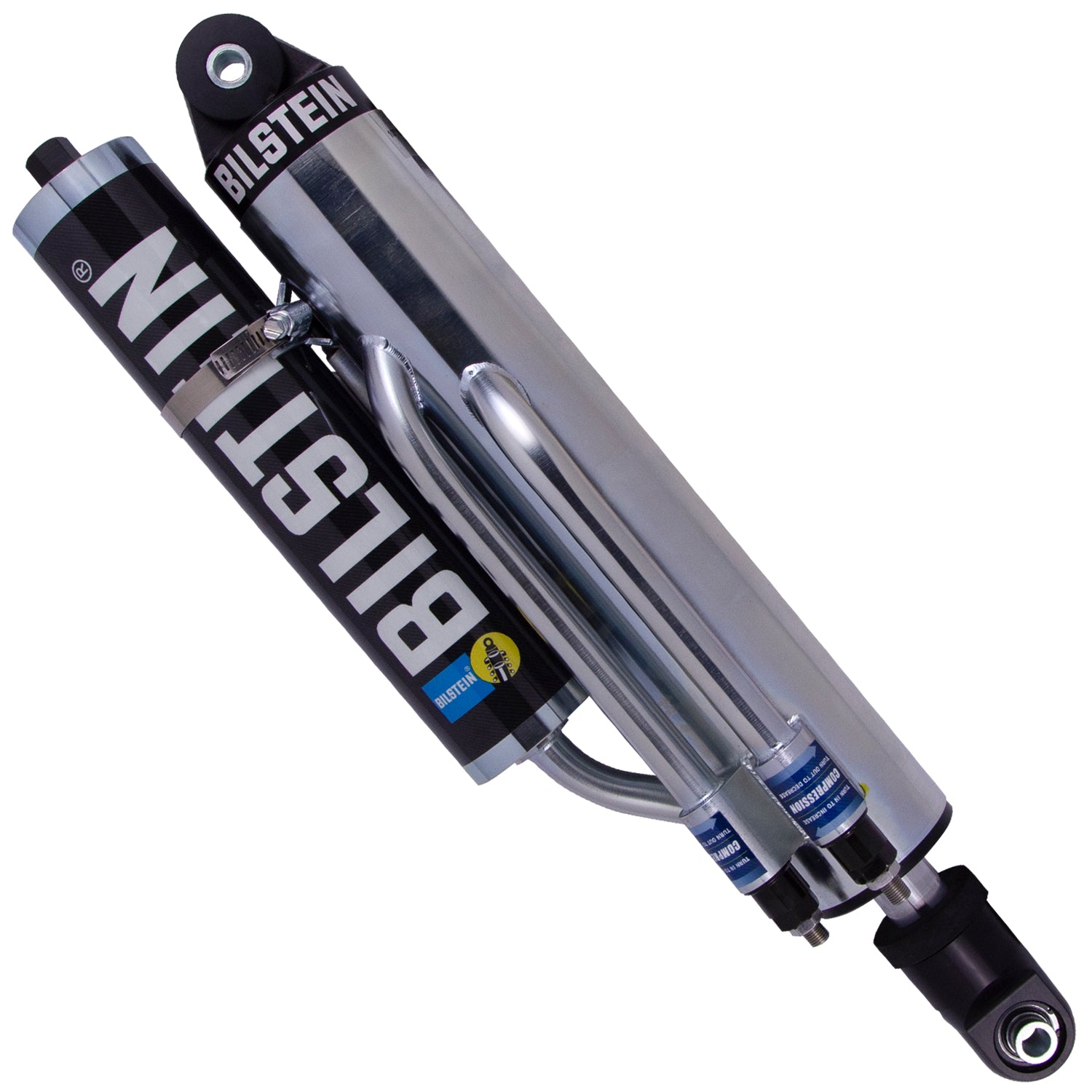

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
  • GTIN: 00651860766546
  • Brand Name: Bilstein
  • Mount Type: Eye-to-Eye
  • Body Diameter (ID): 70mm
  • Boot Included: N/A
  • Reservoir: Yes
  • Extended Length (IN) Rounded: 30
  • Rebound @0.52m/s: Custom
  • Extended Length (MM): 749.3
  • Body Design: 3-Tube Bypass Screw Top
  • Internal Design: Monotube
  • Position: Right
  • Spring Seat Included: No
  • Collapsed Length (IN) Rounded: 20
  • Optional Reservoir Clamp: N/A
  • Extended Length (IN): 29.50
  • Lower Mount Type: Eye .5x1.5in
  • Collapsed Length (IN): 19.50
  • Series: M 9200 (Bypass)
  • Compression @0.52m/s: Custom
  • Upper Mount Type: Eye .5x1.5in
  • Finish: Zinc Plated
  • Collapsed Length (MM): 495.3
  • Country of Origin: United States
  • Emissions : CARB Eligible
  • Life Cycle Status:
  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 33.5000 x 11.8800 x 8.8800 inches
  • Weight: 28.4000 lb
