Bilstein

Bilstein Shock Absorbers

Bilstein Shock Absorbers

$781.00 USD
$781.00 USD $781.00 USD
Sale Sold out

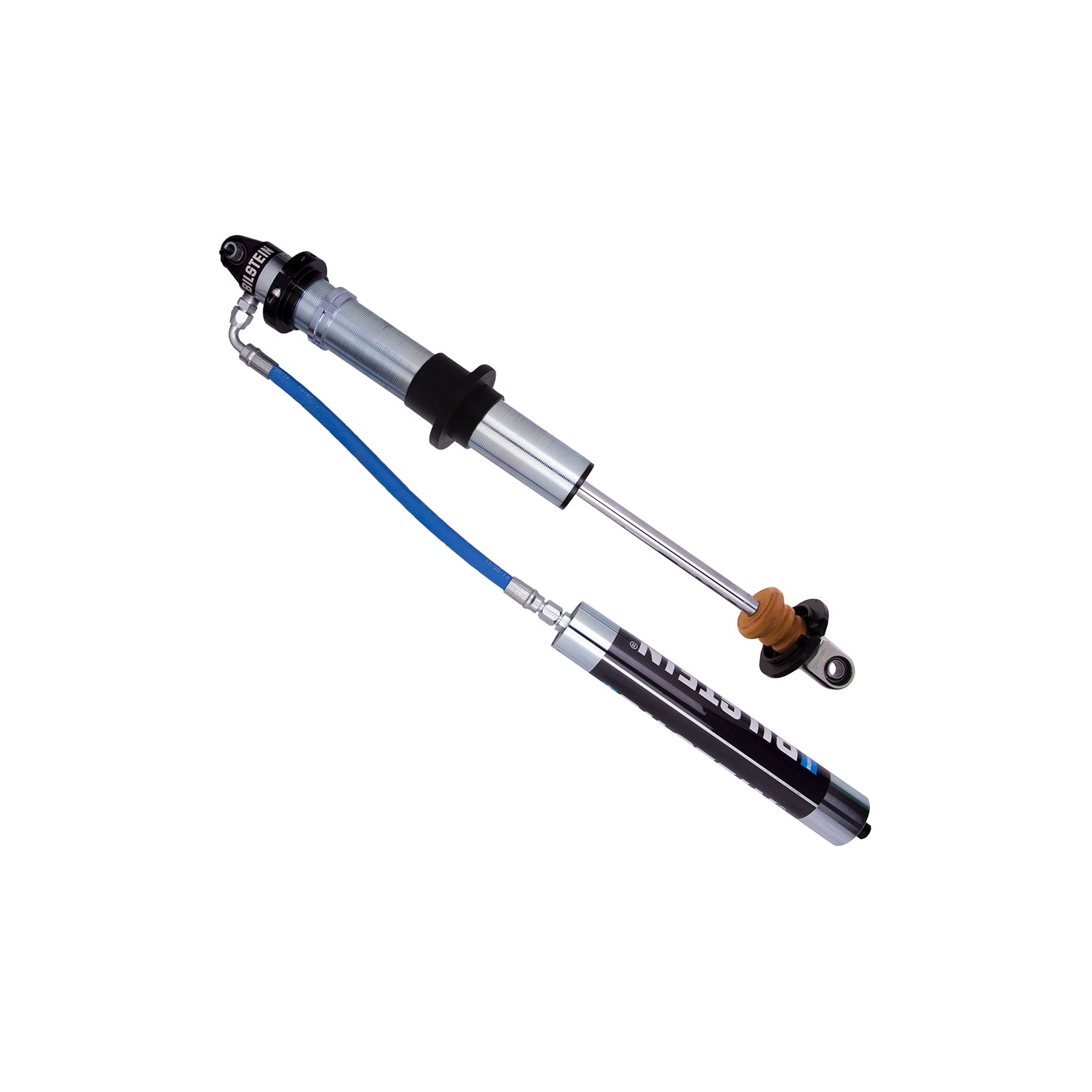

Bilstein M 9200 (Coilover) is designed specifically for professional off-road competition use which requires custom lengths and valve settings. M 9200 (Coilover) features a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm ID remote reservoir and are owner rebuildable and revalvable. M 9200 (Coilover) offers the ability to efficiently adjust spring rates to achieve the optimum performance.
  • GTIN: 00651860752846
  • Brand Name: Bilstein
  • Body Diameter (ID): 60mm
  • Upper Mount Type: Eye .5x1.5in
  • Boot Included: N/A
  • Collapsed Length (IN): 21.50
  • Extended Length (IN): 33.50
  • Lower Mount Type: Eye .5x1.5in
  • Extended Length (IN) Rounded: 34
  • Optional Reservoir Clamp: N/A
  • Compression @0.52m/s: 1000
  • Series: M 9200 (Coilover)
  • Body Design: Threaded Body (Coilover)
  • Rebound @0.52m/s: 2550
  • Extended Length (MM): 850.9
  • Finish: Zinc Plated
  • Internal Design: Monotube
  • Reservoir: Yes
  • Collapsed Length (IN) Rounded: 22
  • Mount Type: Eye-to-Eye
  • Collapsed Length (MM): 546.1
  • Spring Seat Included: No
  • Country of Origin: United States
  • Emissions : CARB Eligible
  • Life Cycle Status:
  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 36.0000 x 7.5000 x 4.5000 inches
  • Weight: 24.3400 lb

PDF:
