Bilstein
Bilstein Shock Absorbers
Bilstein Shock Absorbers
Regular price
$524.00 USD
Regular price
$524.00 USD
Sale price
$524.00 USD
Unit price
per
Couldn't load pickup availability

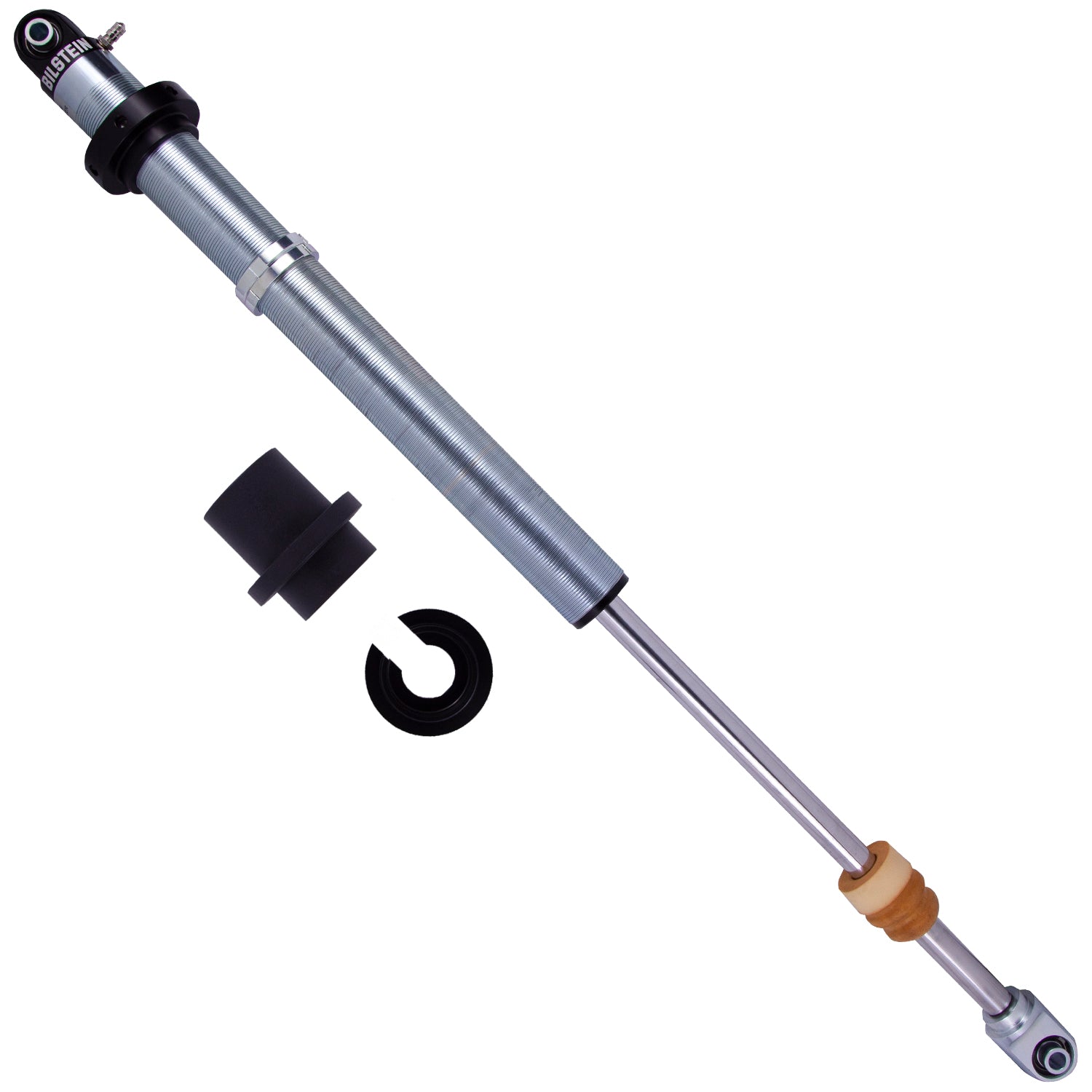

Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance.
Attributes
Attributes
- GTIN: 00651860750699
- Brand Name: Bilstein
- Extended Length (IN) Rounded: 40
- Mount Type: Eye-to-Eye
- Body Diameter (ID): 46mm
- Rebound @0.52m/s: Custom
- Upper Mount Type: Eye .5x1.5in
- Body Design: Threaded Body (Coilover)
- Series: M 9200 (Coil Carrier)
- Reservoir: Yes
- Collapsed Length (IN): 23.50
- Boot Included: N/A
- Spring Seat Included: No
- Extended Length (MM): 1003.3
- Finish: Zinc Plated
- Collapsed Length (MM): 596.9
- Lower Mount Type: Eye .5x1.5in
- Compression @0.52m/s: Custom
- Optional Reservoir Clamp: N/A
- Extended Length (IN): 39.50
- Collapsed Length (IN) Rounded: 24
- Internal Design: Monotube
Extended Information
Extended Information
- Country of Origin: United States
- Emissions : CARB Eligible
- Life Cycle Status:
Packing Information
Packing Information
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 36.0000 x 7.5000 x 4.5000 inches
- Weight: 14.8000 lb
