Bilstein

Bilstein Shock Absorbers

Bilstein Shock Absorbers

$513.00 USD
$513.00 USD $513.00 USD
Sale Sold out

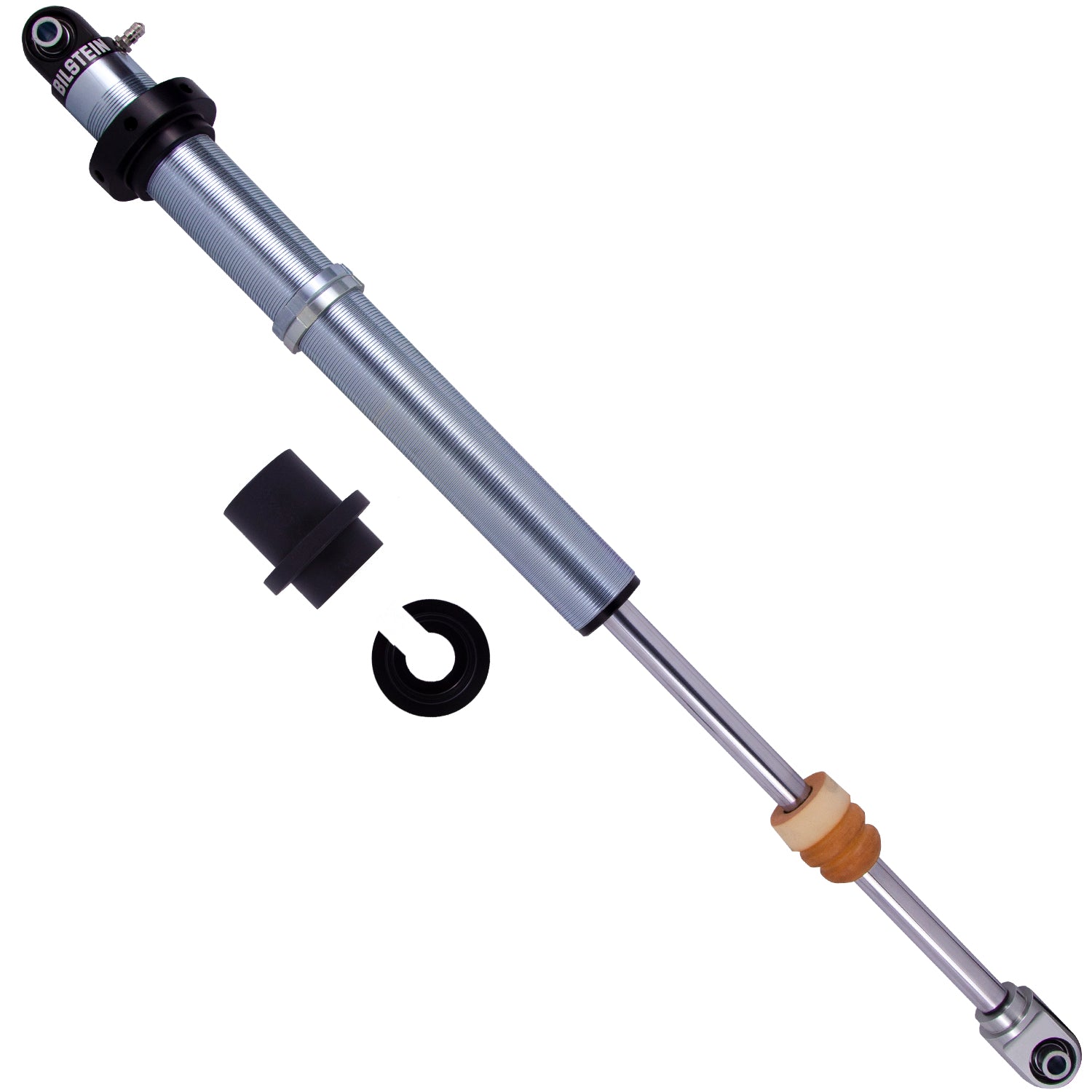

Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance.
  • GTIN: 00651860750675
  • Brand Name: Bilstein
  • Spring Seat Included: No
  • Compression @0.52m/s: Custom
  • Extended Length (IN): 35.50
  • Finish: Zinc Plated
  • Upper Mount Type: Eye .5x1.5in
  • Collapsed Length (IN) Rounded: 22
  • Collapsed Length (IN): 21.50
  • Collapsed Length (MM): 546.1
  • Body Diameter (ID): 46mm
  • Optional Reservoir Clamp: N/A
  • Body Design: Threaded Body (Coilover)
  • Boot Included: N/A
  • Mount Type: Eye-to-Eye
  • Extended Length (MM): 901.7
  • Internal Design: Monotube
  • Series: M 9200 (Coil Carrier)
  • Reservoir: Yes
  • Rebound @0.52m/s: Custom
  • Extended Length (IN) Rounded: 36
  • Lower Mount Type: Eye .5x1.5in
  • Country of Origin: United States
  • Emissions : CARB Eligible
  • Life Cycle Status:
  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 36.0000 x 7.5000 x 4.5000 inches
  • Weight: 16.0000 lb
