Bilstein
Bilstein Shock Absorbers
Bilstein Shock Absorbers
Regular price
$513.00 USD
Regular price
$513.00 USD
Sale price
$513.00 USD
Unit price
per
Couldn't load pickup availability

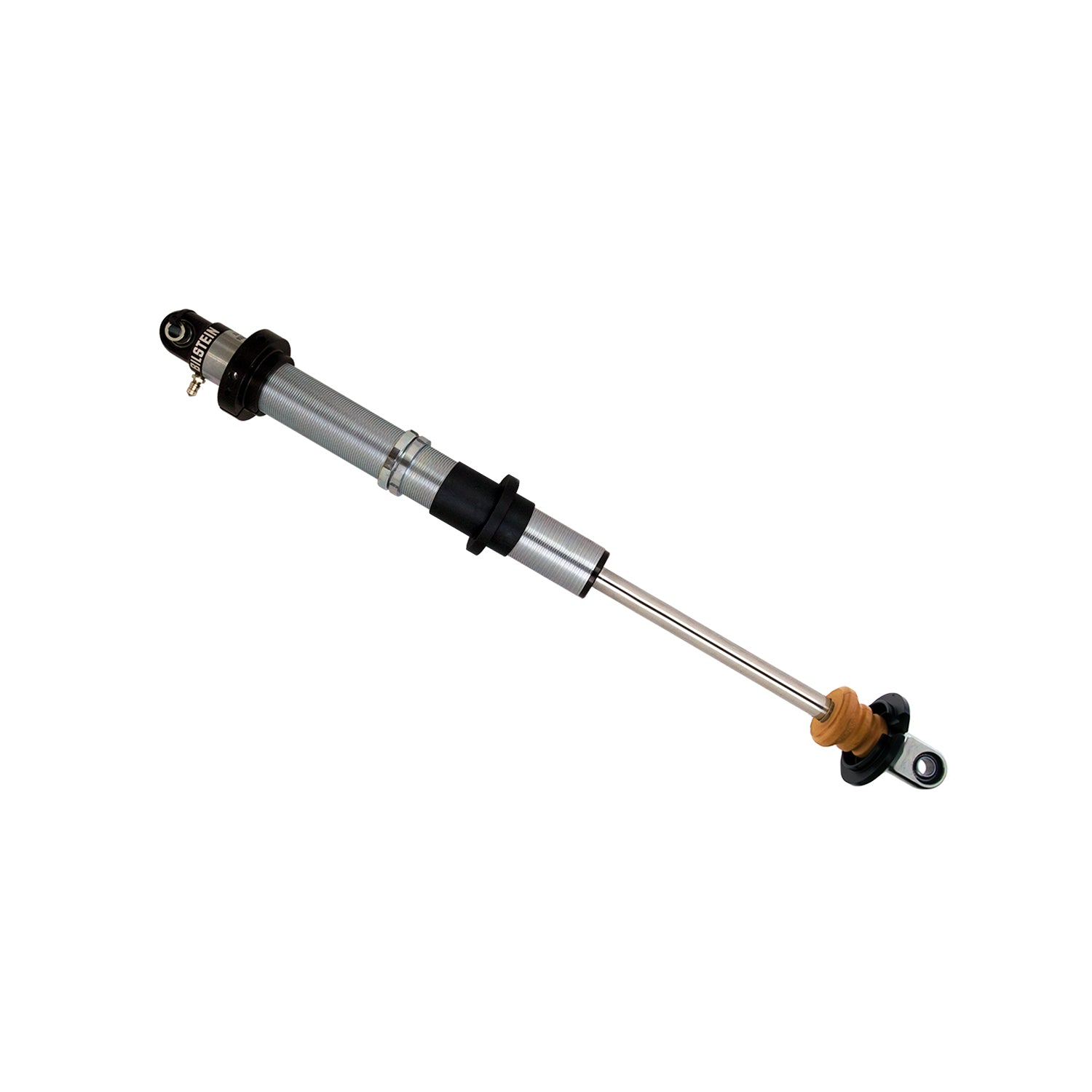

Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance.
Attributes
Attributes
- GTIN: 00651860750668
- Brand Name: Bilstein
- Extended Length (IN) Rounded: 32
- Finish: Zinc Plated
- Collapsed Length (IN) Rounded: 20
- Extended Length (MM): 800.1
- Rebound @0.52m/s: Custom
- Series: M 9200 (Coil Carrier)
- Extended Length (IN): 31.50
- Lower Mount Type: Eye .5x1.5in
- Optional Reservoir Clamp: N/A
- Collapsed Length (MM): 495.3
- Internal Design: Monotube
- Boot Included: N/A
- Mount Type: Eye-to-Eye
- Reservoir: Yes
- Spring Seat Included: No
- Body Diameter (ID): 46mm
- Body Design: Threaded Body (Coilover)
- Upper Mount Type: Eye .5x1.5in
- Compression @0.52m/s: Custom
- Collapsed Length (IN): 19.50
Extended Information
Extended Information
- Country of Origin: United States
- Emissions : CARB Eligible
- Life Cycle Status:
Packing Information
Packing Information
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 36.0000 x 7.5000 x 4.5000 inches
- Weight: 12.6100 lb
