Bilstein
Bilstein Shock Absorbers
Bilstein Shock Absorbers
Regular price
$141.88 USD
Regular price
$141.88 USD
Sale price
$141.88 USD
Unit price
per
Couldn't load pickup availability

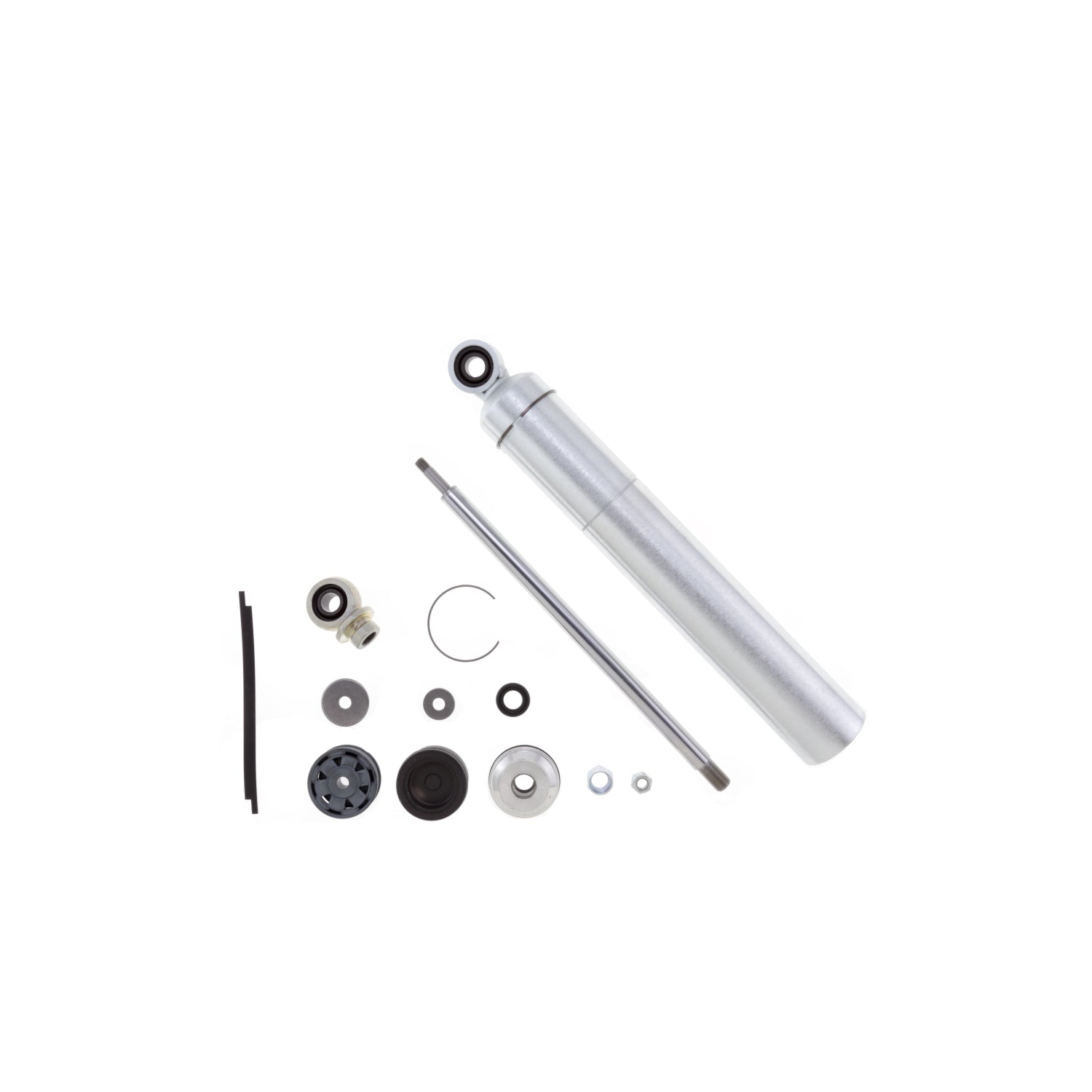

Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). They are also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.
Attributes
Attributes
- GTIN: 00651860750347
- Brand Name: Bilstein
- Valving Identifier: Digressive Dry Kit (no valving)
- Body Diameter (ID): 46mm
- Body Material: Steel
- Piston Type: Digressive
- Lower Mount Type: 1/2in Heim
- Boot Included: No
- Series: SZ Series
- Extended Length (MM): 597.5
- Finish: Zinc Plated
- Collapsed Length (MM): 378.0
- Body Design: Smooth Body (Non-coilover)
- Collapsed Length (IN): 14.88
- Adjustable Damping: Non-Adjustable
- Extended Length (IN): 23.52
- Upper Mount Type: 1/2in Heim
- Spring Seat Included: No
- Internal Design: Monotube
Extended Information
Extended Information
- Country of Origin: United States
- Emissions : CARB Eligible
- Life Cycle Status:
Packing Information
Packing Information
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 26.8000 x 2.9500 x 2.9500 inches
- Weight: 3.7000 lb
