Bilstein
Bilstein Shock Absorbers
Bilstein Shock Absorbers
Regular price
$141.88 USD
Regular price
$141.88 USD
Sale price
$141.88 USD
Unit price
per
Couldn't load pickup availability

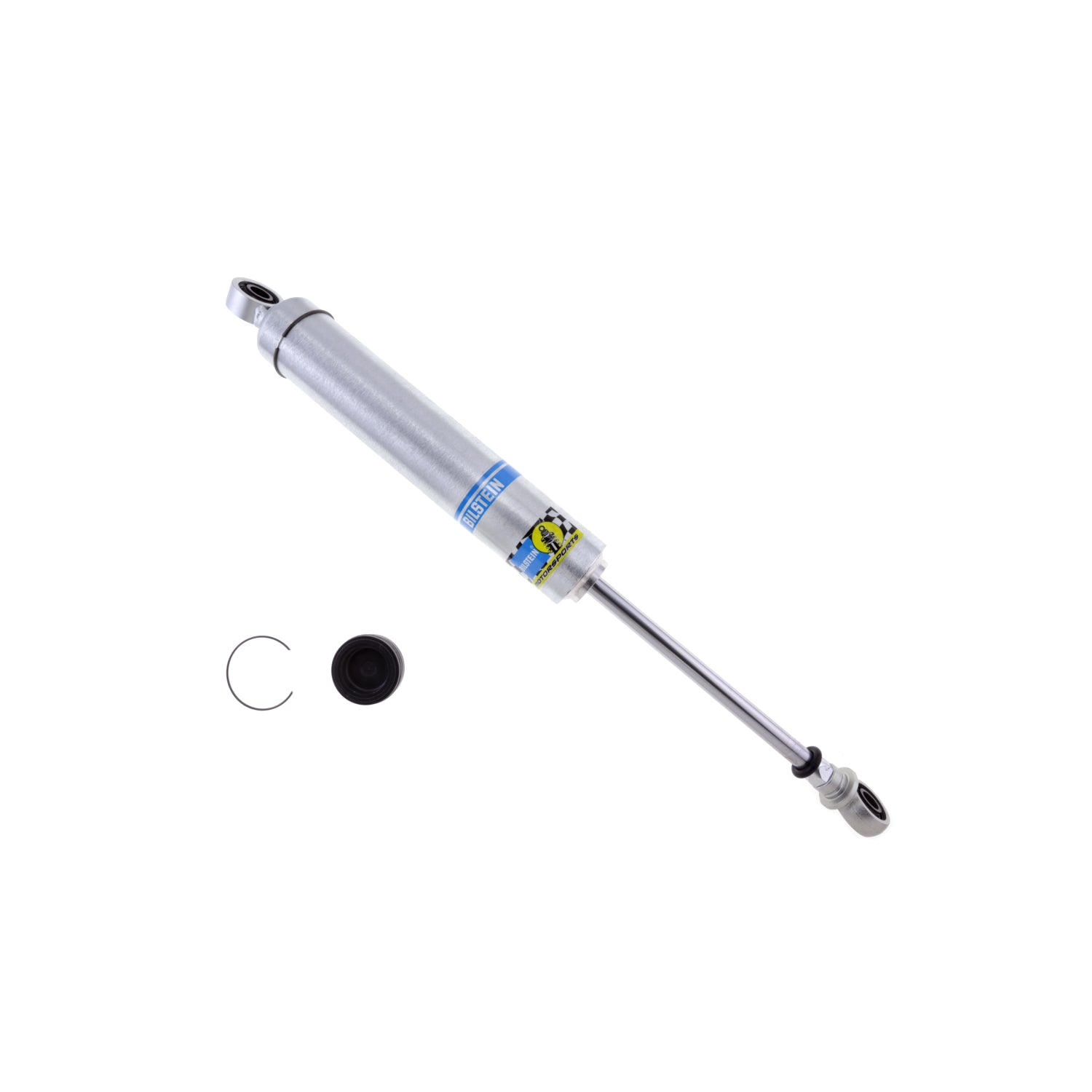

Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). They are also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.
Attributes
Attributes
- GTIN: 00651860750323
- Brand Name: Bilstein
- Extended Length (IN): 20.08
- Lower Mount Type: 1/2in Heim
- Extended Length (MM): 510.0
- Adjustable Damping: Non-Adjustable
- Series: SZ Series
- Piston Type: Digressive
- Body Diameter (ID): 46mm
- Boot Included: No
- Body Design: Smooth Body (Non-coilover)
- Internal Design: Monotube
- Valving Identifier: Digressive Dry Kit (no valving)
- Spring Seat Included: No
- Collapsed Length (MM): 334.0
- Body Material: Steel
- Finish: Zinc Plated
- Upper Mount Type: 1/2in Heim
- Collapsed Length (IN): 13.15
Extended Information
Extended Information
- Country of Origin: United States
- Emissions : CARB Eligible
- Life Cycle Status:
Packing Information
Packing Information
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 26.8000 x 2.9500 x 2.9500 inches
- Weight: 3.2900 lb
