Bilstein

Bilstein Shock Absorbers

Bilstein Shock Absorbers

Regular price $1,091.00 USD
Regular price $1,189.90 USD Sale price $1,091.00 USD
Sale Sold out

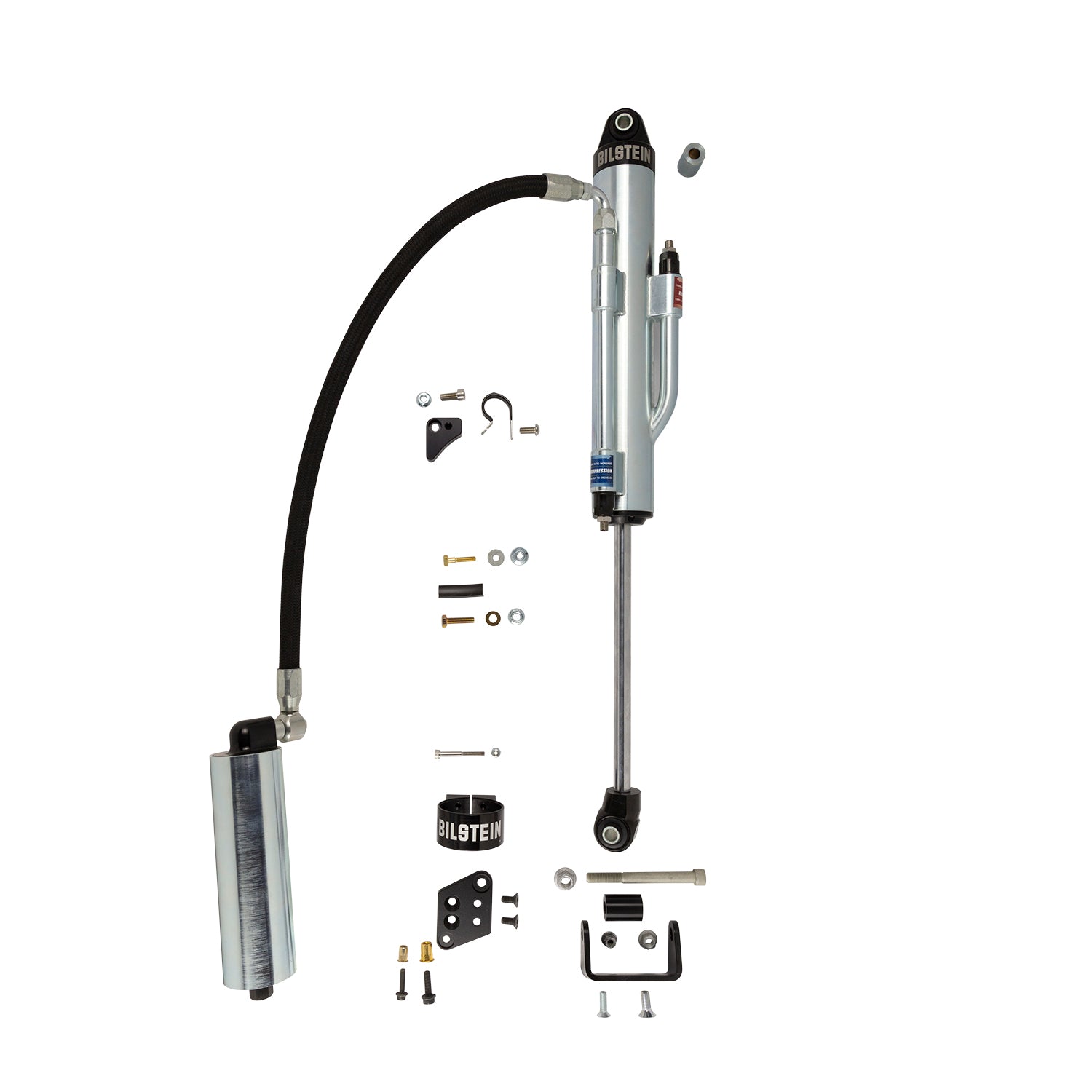

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
  • GTIN: 00651860849836
  • Brand Name: Bilstein
  • Collapsed Length (IN): 18.11
  • Series: B8 8100 (Bypass)
  • Extended Length (IN): 29.13
  • Body Design: Bypass Body (Non-Coilover)
  • Spring Seat Included: No
  • Extended Length (MM): 740.0
  • Collapsed Length (MM): 460.0
  • Internal Design: Monotube
  • Upper Mount Type: Eye 12.8mm
  • Finish: Zinc Plated
  • Reservoir: Yes
  • Boot Included: No
  • Lower Mount Type: Eye 12.8mm
  • Adjustable Damping: Double Adjustable – Compression and Rebound
  • Body Diameter (ID): 60mm
  • Country of Origin: United States
  • Emissions : CARB Eligible
  • Life Cycle Status:
  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 33.5000 x 11.8800 x 8.8800 inches
  • Weight: 23.9000 lb
