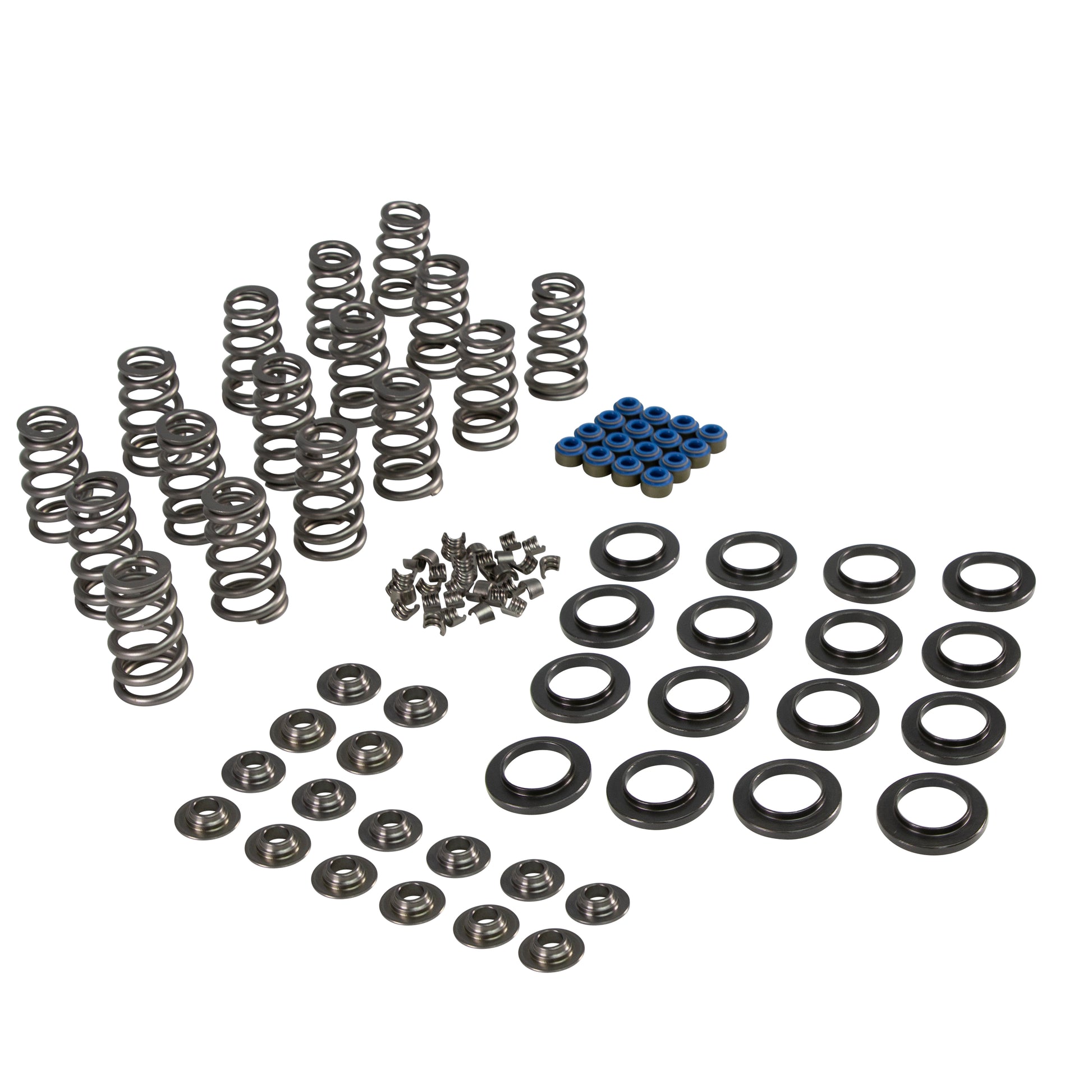

.630" Lift Conical Spring Kit W/ Ti Retainers For '09-'18 Dodge 5.7L HEMI

• GTIN: 00036584399377
• Brand Name: COMP Cams
• Coil Bind Height: 1.125
• ID Small End: 0.662
• ID Big End: 0.918
• OD Small End: 1.030
• OD Big End: 1.286
• Number of Springs: 16
• Max Lift: 0.630
• Includes Shims?: No
• Free Length: 2.110
• Spring Style: CONICAL
• Valve Spring Series: CONICAL
• Damper: NA
• Retainer Material: Titanium
• Includes Retainers?: Yes
• Spring Seat Type: Chromemoly Steel
• Included Seats: 4683
• Includes Seats?: Yes
• Spring Rate: 440
• Open Load: 399
• Seat Pressure: 136
• Installed Height: 1.800

• Country of Origin: United States
• Life Cycle Status: Available To Order
• Emissions : CARB Eligible

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 12 x 3 x 6 inches
• Weight: 4.1 lb
