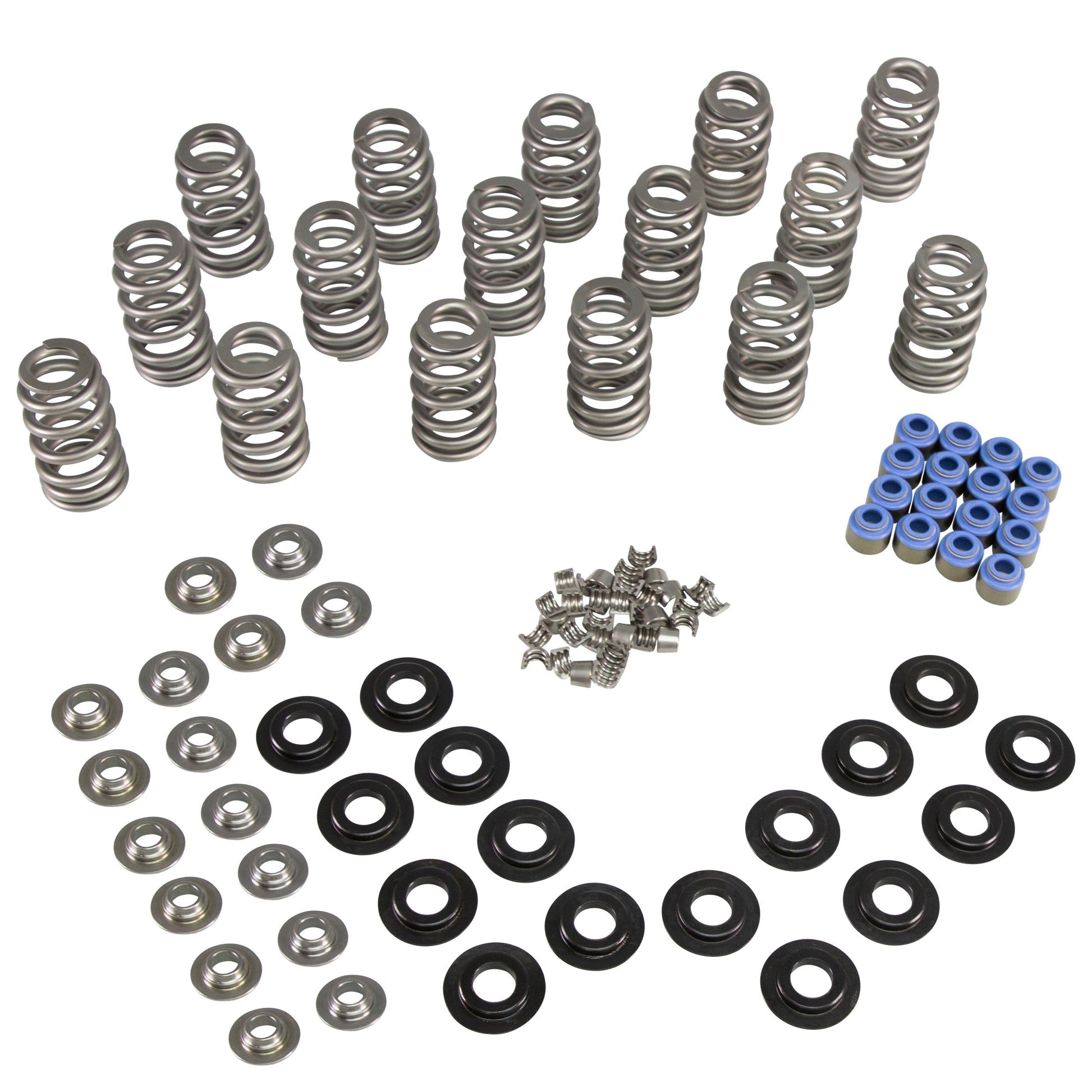

.600" Lift Beehive Spring Kit W/ Titanium Retainers For '03-'08 Dodge 5.7L HEMI

• GTIN: 00036584399339
• Brand Name: COMP Cams
• Includes Shims?: No
• Free Length: 2.130
• Spring Style: Beehive
• Valve Spring Series: Beehive
• Damper: NA
• Retainer Material: Titanium
• Includes Retainers?: Yes
• Spring Seat Type: Chromemoly
• Included Seats: 4685
• Includes Seats?: YES
• Spring Rate: 372
• Open Load: 348
• Seat Pressure: 125
• Installed Height: 1.800
• Coil Bind Height: 1.100
• ID Small End: 0.650
• ID Big End: 0.885
• OD Small End: 1.075
• OD Big End: 1.310
• Number of Springs: 16
• Max Lift: 0.600

• Country of Origin: United States
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 12 x 6.5 x 2.9 inches
• Weight: 4.6 lb
