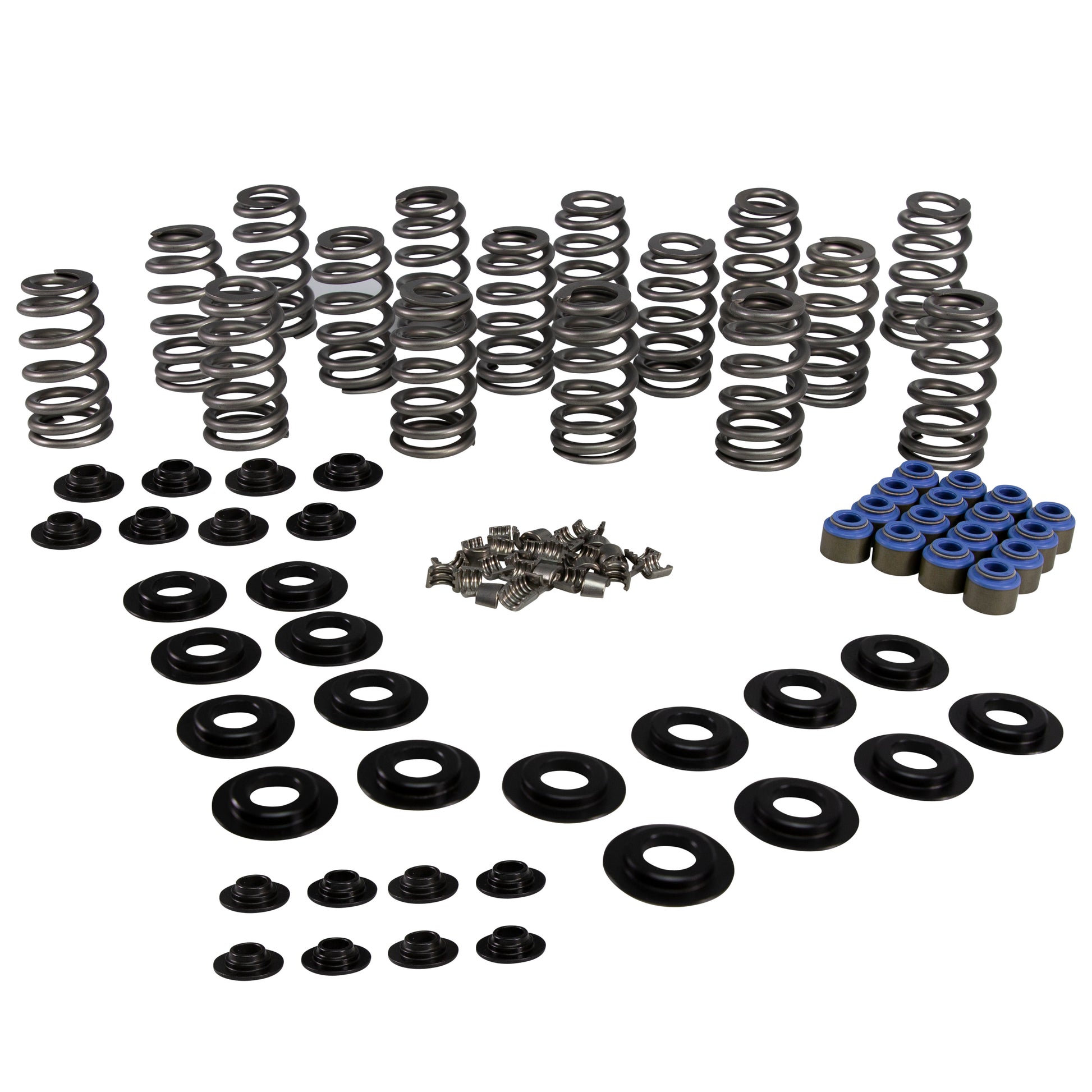

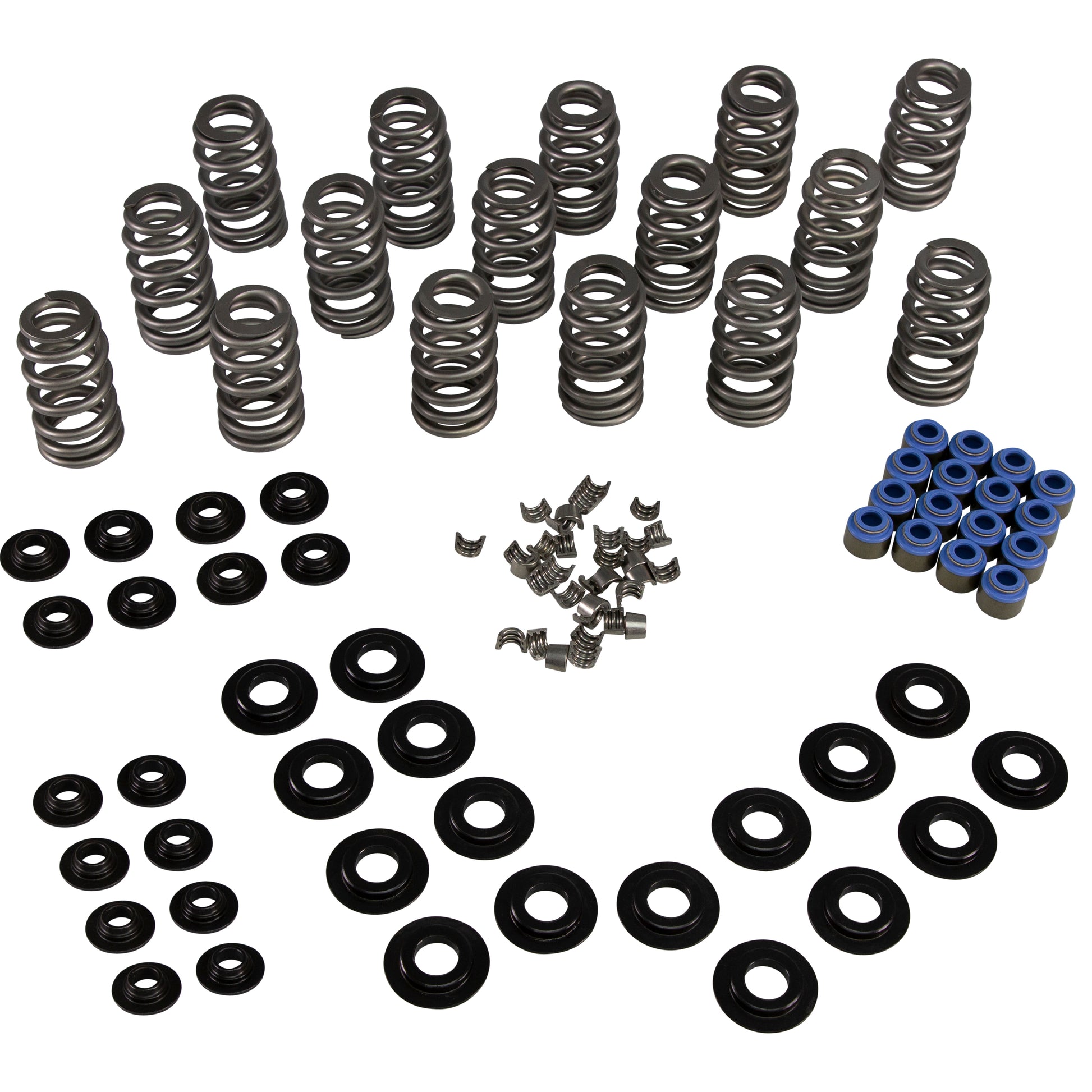

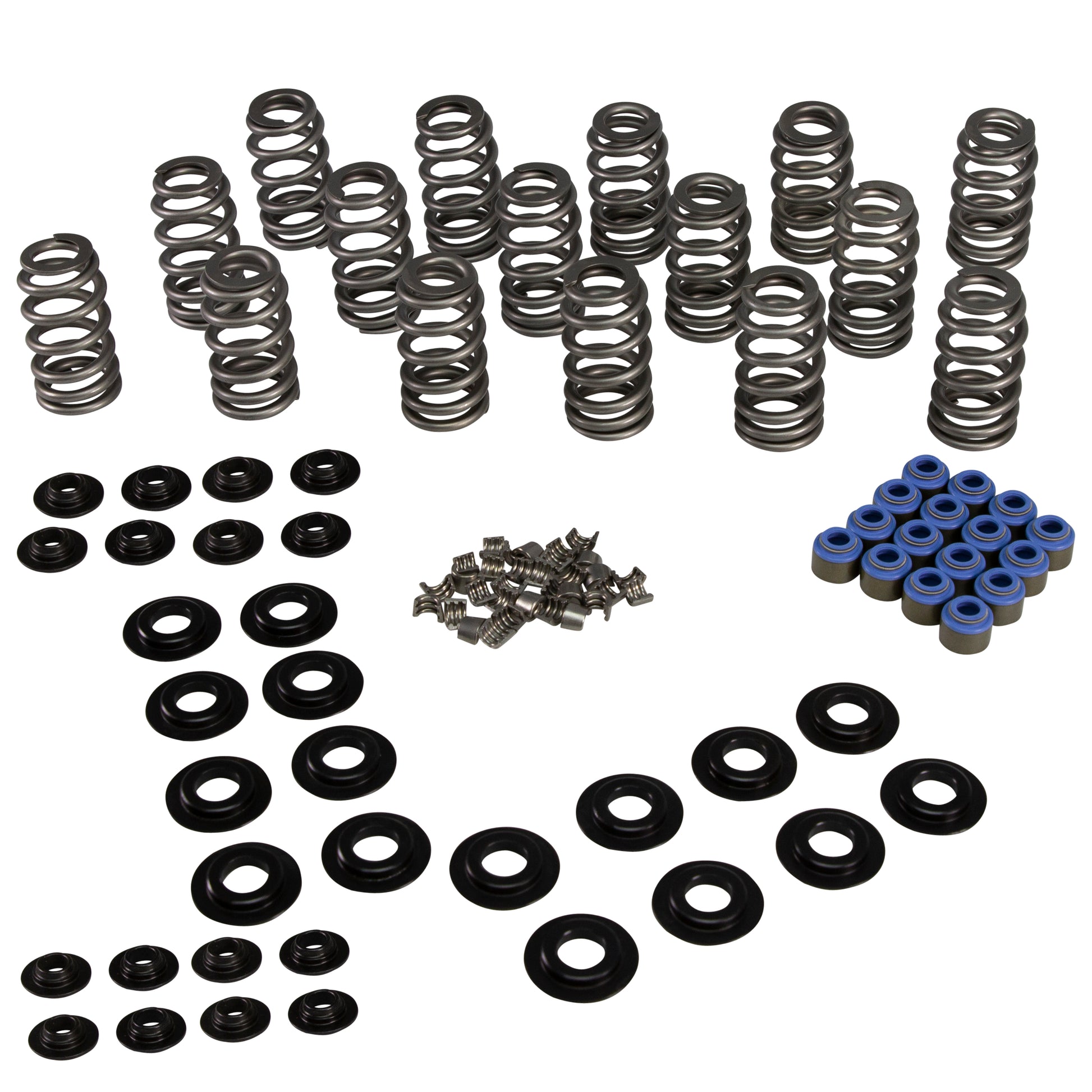

.600" Lift Beehive Spring Kit W/ Steel Retainers For '03-'08 Dodge 5.7L HEMI

• GTIN: 00036584399322
• Brand Name: COMP Cams
• Includes Seats?: YES
• Max Lift: 0.600
• Free Length: 2.130
• Spring Style: BEEHIVE
• Damper: NA
• Retainer Material: CHROMOLY
• Includes Retainers?: YES
• Spring Seat Type: STEEL
• Included Seats: 4685
• Includes Shims?: NA
• Spring Rate: 372
• Open Load: 348
• Seat Pressure: 125
• Installed Height: 1.800
• Coil Bind Height: 1.100
• Outer Spring Inside Diameter: 0.885
• Outer Spring Outside Diameter: 1.310
• Number of Springs: 16
• Engine Family/Year Make and Model Range: 03-08 5.7L HEMI

• Country of Origin: United States
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 12 x 6.5 x 2.9 inches
• Weight: 4.6 lb
