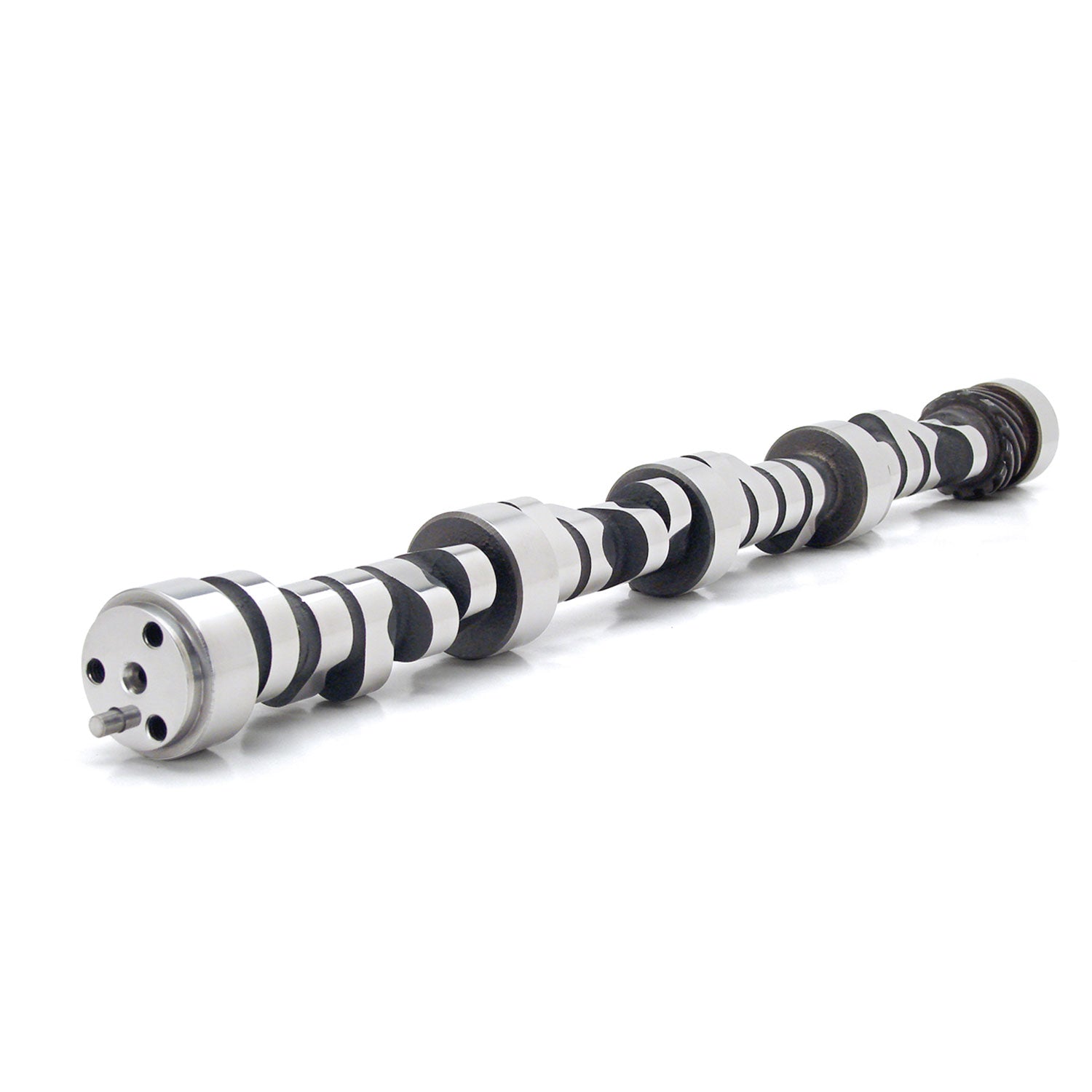

4-Pattern 234/244 IB 236/246 OB Hydraulic Roller Cam For OE Roller SBC

• GTIN: 00036584259565
• Brand Name: COMP Cams
• Inboard Exhaust Duration at .050 inch Lift: 244
• Outboard Exhaust Duration at .050 inch Lift: 246
• Advertised Inboard Intake Duration: 287
• Advertised Outboard Intake Duration: 289
• Advertised Inboard Exhaust Duration: 299
• Advertised Outboard Exhaust Duration: 301
• Inboard Intake Valve Lift: 0.627
• Outboard Intake Valve Lift: 0.63
• Inboard Exhaust Valve Lift: 0.614
• Outboard Exhaust Valve Lift: 0.618
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Billet Steel
• Engine Family: Chevrolet 305-350 c.i. 8 Cylinder O.E. Roller (1987-1998)
• Lifter Type: Hydraulic Roller
• Amazon ASIN: N/A
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Camshaft Series: 4-Pattern (.900" Base Circle)
• Usage: Street/Strip
• Cam Type: Hydraulic Roller
• Grind Number: 287QS9
• Basic Operating RPM Range: 2,400-6,700
• Inboard Intake Duration at .050 Inch Lift: 234
• Outboard Intake Duration at .050 Inch Lift: 236

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Discontinued

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 3 x 2.75 inches
• Weight: 8.8 lb
